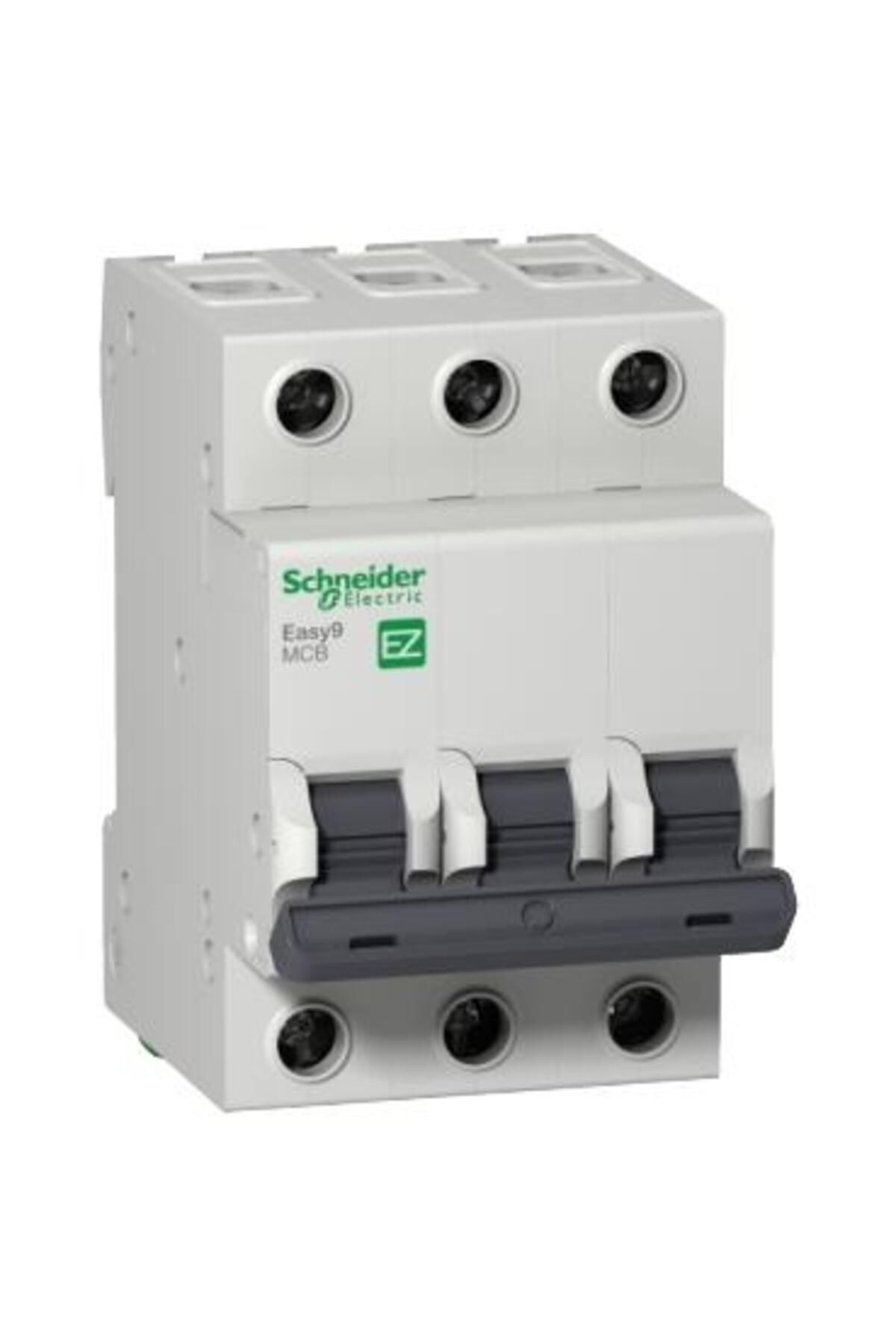

Schneider EZ9F34316 3x16 A C 4.5kA Easy9 - AUTO FUSE

Series easy9 device application distribution product or component type miniature circuit breaker product group easy9 mcb poles 3p protected number of poles 3 [in] rated current 16 a grid type ac switching unit technology thermal magnetic gradient code c breaking capacity 4500 a icn De 230 v ac 50/60 hz suitable iec 60898 14500 a icn De 400 v ac 50/60 hz suitable iec 60898 1 compliance with insulation yes complies with iec 60898 1 complementary mains frequency 50 hz [ue] nominal operating voltage 400 v ac 50 hz magnetic trip limit 5 10 x in [ics] nominal service interruption capacity 4.5 ka 100 % x icn

De 400 v ac 50/60 hz suitable iec 60898 1 [ui] nominal insulation voltage 500 v ac 50/60 hz conforming to iec 60898 1 [uimp] rated impulse withstand voltage 4 kv conforming to iec 60898

1 contact position indicator yes control type toggle signalization on the device no mounting type plug-in mount support din rail 9 mm screw pitch 6 height 81 mm width 54 mm depth 66.5 mm color gray (ral 7035) mechanical durability 10000 cycles electrical durability 4000 cycles connections

Terminals tunnel type terminal (upper or lower) 1…25 mm² hardtunnel type terminal (upper or lower) 1…16 mm² flexible crimping torque 2 n M upper or lower environment standards iec 60898 1 product certificates gost

R ip protection degree ip20 conforming to iec 60529 contamination degree 2 tropical climate 2 relative humidity 95% De 25…60 ° C rated operating ambient temperature

25…60 ° C storage ambient conditions

40…85 ° C packaging units unit type of package 1 pce number of units in package 1 1 package 1 height 7.7 cm package 1 width 5.5 cm package 1 length 8.7 cm package 1 weight 288 g unit type of package 2 bb1 number of units in package 2 4 package 2 height 8.4 cm package 2 width 8.8 cm package 2 length 22.5 cm package 2 weight 1,201 kg unit type of package 3 s03 number of units in package 3 48 package 3 height 30 cm package 3 width 30 cm package 3 length 40 cm package 3 weight 14,927 kg contract warranty warranty 18 months
