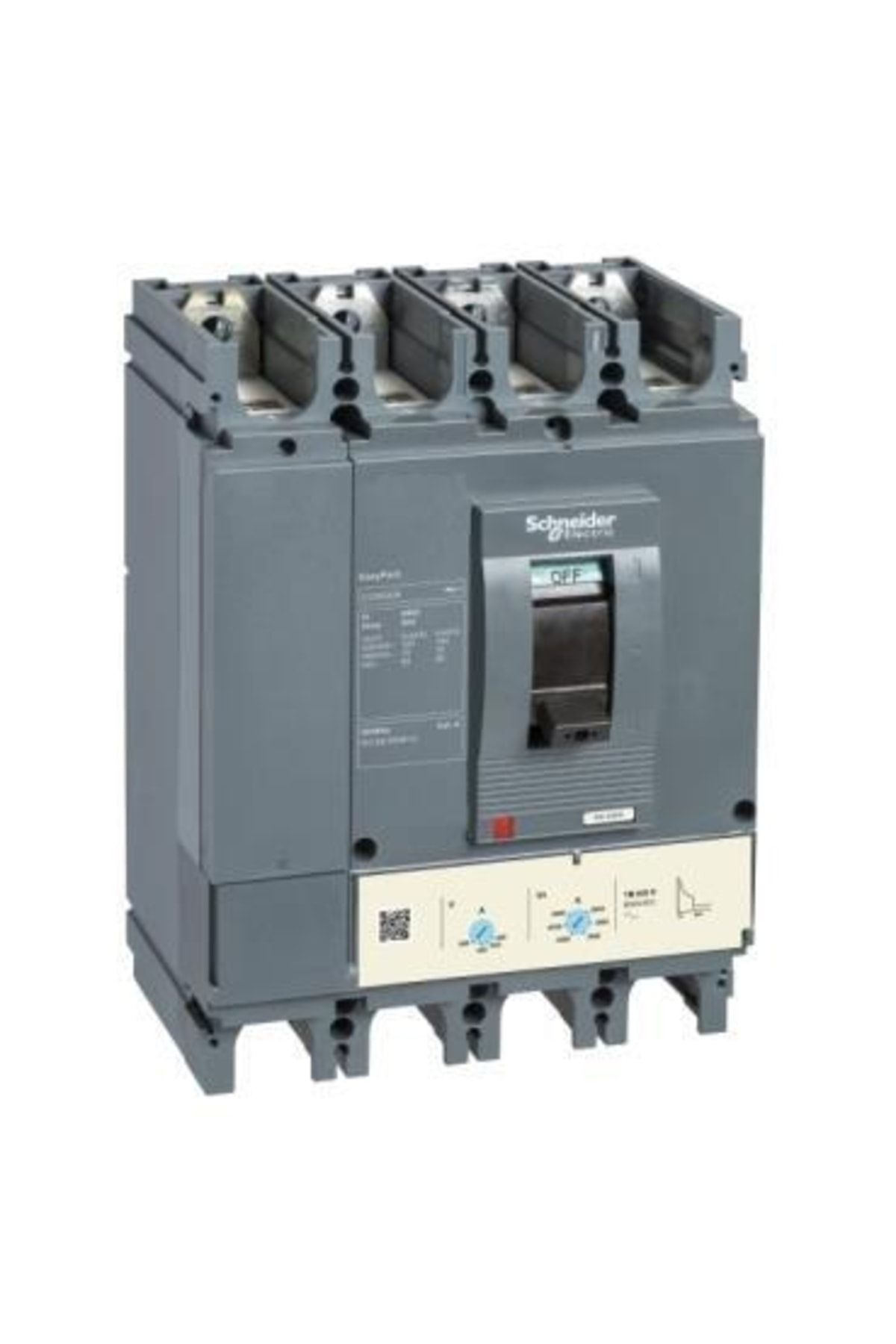

Schneider Lv563506, 250-630 Ampere, 36 Ka, 4 Pole, Compact Switch, Cvs630f, Ets 2.3 Protected

Main series easypact product name easypact cvs product group cvs630f product or component type circuit breaker device application distribution pole definition 4p protected pole description 4d3d + n/23d earth leakage protection (vigi add on) none [in] nominal current 630 a

de 40 ° C mains type ac usage category category a [icu] breaking capacity 40 ka icu De 220/240 v ac 50/60 hz suitable iec 60947 236 ka icu De 380/415 v ac 50/60 hz suitable iec 60947 230 ka icu De 440 v ac 50/60 hz suitable iec 60947 2 opening units name ets 2

3 opening unit technology electronic opening unit rating 630 a De 40 ° C protection type overload protection (long-term)instantaneous short circuit protectionshort-term short circuit protection complementary [uimp] rated impulse withstand voltage suitable for 8 kv en/iec 60947 2 mains frequency 50/60 hz degree code f [ics] nominal service breaking capacity 40 ka De 220/240 v ac 50/60 hz suitable iec 60947 236 ka De 380/415 v ac 50/60 hz suitable iec 60947 223 ka De 440 v ac 50/60 hz suitable iec 60947 2 neutral position left mechanical strength 15000 cycles electrical strength 4000 cycles suitable for 415 v in iec 60947 2 opening unit protection functions lsoi control type toggle neutral protection setting 1 x ir (4d)0.5 x ir (3d + n/2) long-term opening setting type lr adjustable 9 setting long-term opening setting range 250 630 a long time delay setting type fixed [tr] long time delay setting 5.5 s

De 7.2 x ir8 s De 6 x ir200 s De 1.5 x ir thermal memory yes short-term opening setting type isd adjustable 9 settings [isd] short-term opening setting range 1

5

10 x ir short-term delay setting type fixed momentary opening setting type fixed momentary opening setting range 11 x in contact position indicator yes mounting type fixed mounting support back plate top connection front down connection front connections Terminals screw connection connection range 45 mm compatibility code cvs630 width 185 mm depth 110 mm height 255 mm product weight 7.1 kg environment standards en 60947

2iec 60947 2 product certificates gostiec electric shock protection class class ii contamination degree 3 in accordance with iec 60664

1 ip protection grade ip40 rated operating ambient temperature 25…70 ° C storage ambient conditions

50…85 ° C packaging units unit type of package 1 pce number of units in package 1 1 package 1 height 15.5 cm package 1 width 20.5 cm package 1 length 29 cm package 1 weight 8.23 kg unit type of package 2 car number of units in package 2 3 package 2 height 23 cm package 2 width 38 cm package 2 length 49.5 cm package 2 weight 24.69 kg unit type of package 3 pal number of units in package 3 24 package 3 height 107.2 cm package 3 width 60 cm package 3 length 80 cm package 3 weight 204.72 kg contract warranty warranty 18 months
