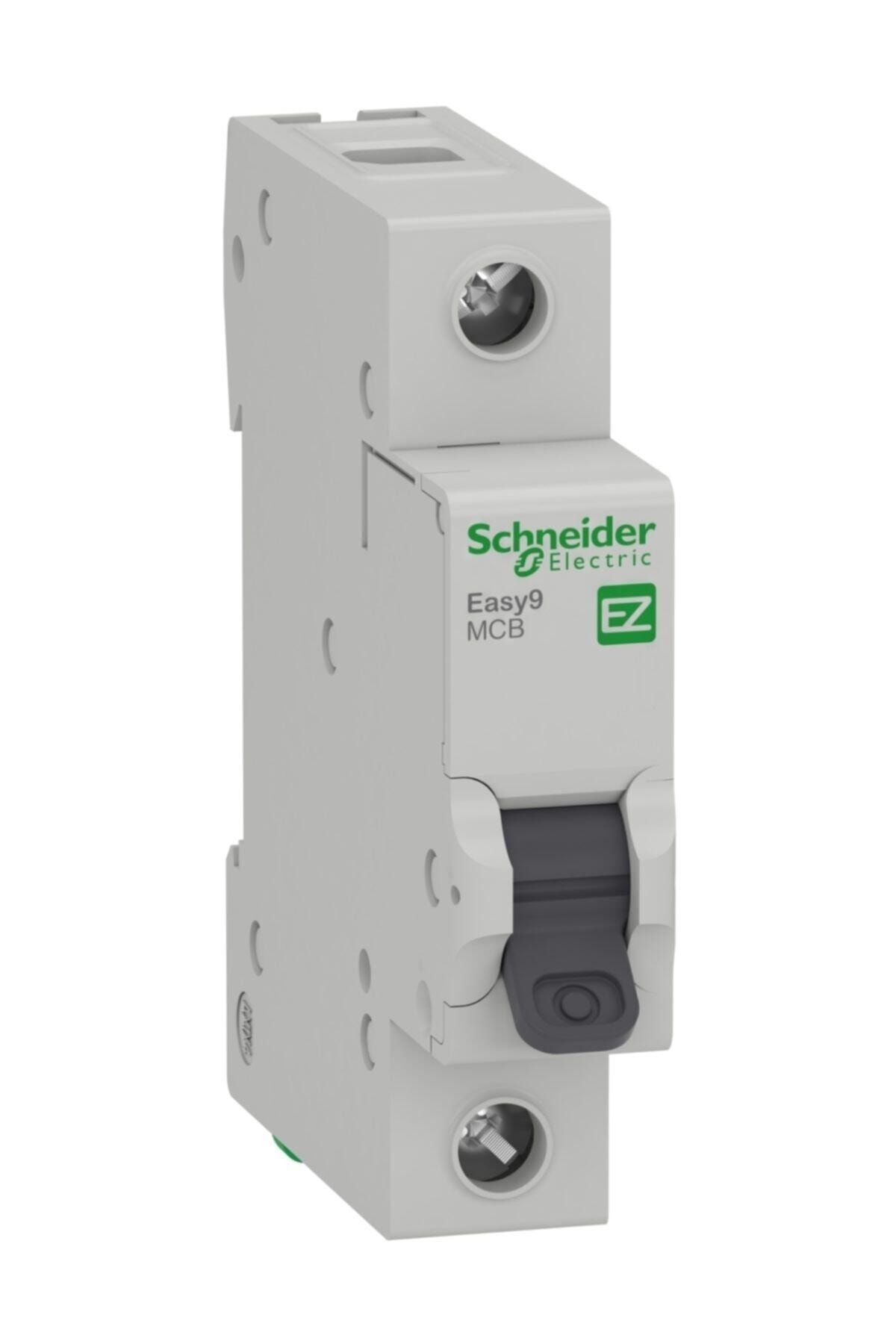

Schneider Schneider Ez9f56132 Easy9 1 Phase 32ampere 6 Ka C Type Automatic Fuse C32x1

Main series easy9 device application distribution product or component type miniature circuit breaker product group easy9 mcb poles 1p protected number of poles 1 [in] rated current 32 a grid type ac switching unit technology thermal magnetic gradient code c breaking capacity 6000 a icn De 230 v ac 50/60 hz suitable ec 60898 For 110000 De 127 v ac 50/60 hz conform to ec 60898 1 compliance with insulation yes ec 60898 1 complementary mains frequency 50 hz [ue] nominal operating voltage 230 v ac 50 hz 127 v ac 50 hz magnetic opening limit 5 10 x [ics] nominal service cutting capacity 6 ka 100 % x ıcn De 230 v ac 50/60 hz suitable ec 60898 1 [ui] nominal insulation voltage 500 v ac 50/60 hz conform to ec 60898 1 [uimp] rated pulse withstand voltage 4 kv suitableiec 60898 1 contact position indicator yes control type toggle device without signaling on the device mounting type plug-in mounting support din rail 9 mm screw pitch 2 height 81 mm width 18 mm depth 66.5 mm color gray (ral 7035) mechanical durability 10000 cycles electrical durability 4000 cycles connections. Terminals tunnel type terminal (upper or lower) 1…25 mm² flexible tunnel type terminal (upper or lower) 1…35 mm² hard crimping torque 3.5 n

M upper or lower ambient standards iec 60898 1 product certificates vdece ip protection degree ip20 conforming to iec 60529 contamination degree 2 tropical climate 2 relative humidity 95% De 5…60 ° C rated operating ambient temperature

5…60 ° C storage ambient conditions

40…85 ° C packaging units unit type of package 1 pce number of units in package 1 1 package 1 height 7.4 cm package 1 width 1.8 cm package 1 length 8.5 cm package 1 weight 120 g unit type of package 2 bb1 number of units in package 2 12 package 2 height 8 cm package 2 width 8.8 cm package 2 length 22.8 cm package 2 weight 1.49 kg unit type of package 3 s03 number of units in package 3 144 package 3 height 30 cm package 3 width 30 cm package 3 length 40 cm package 3 weight 17.28 kg contract guarantee warranty 18 months.
