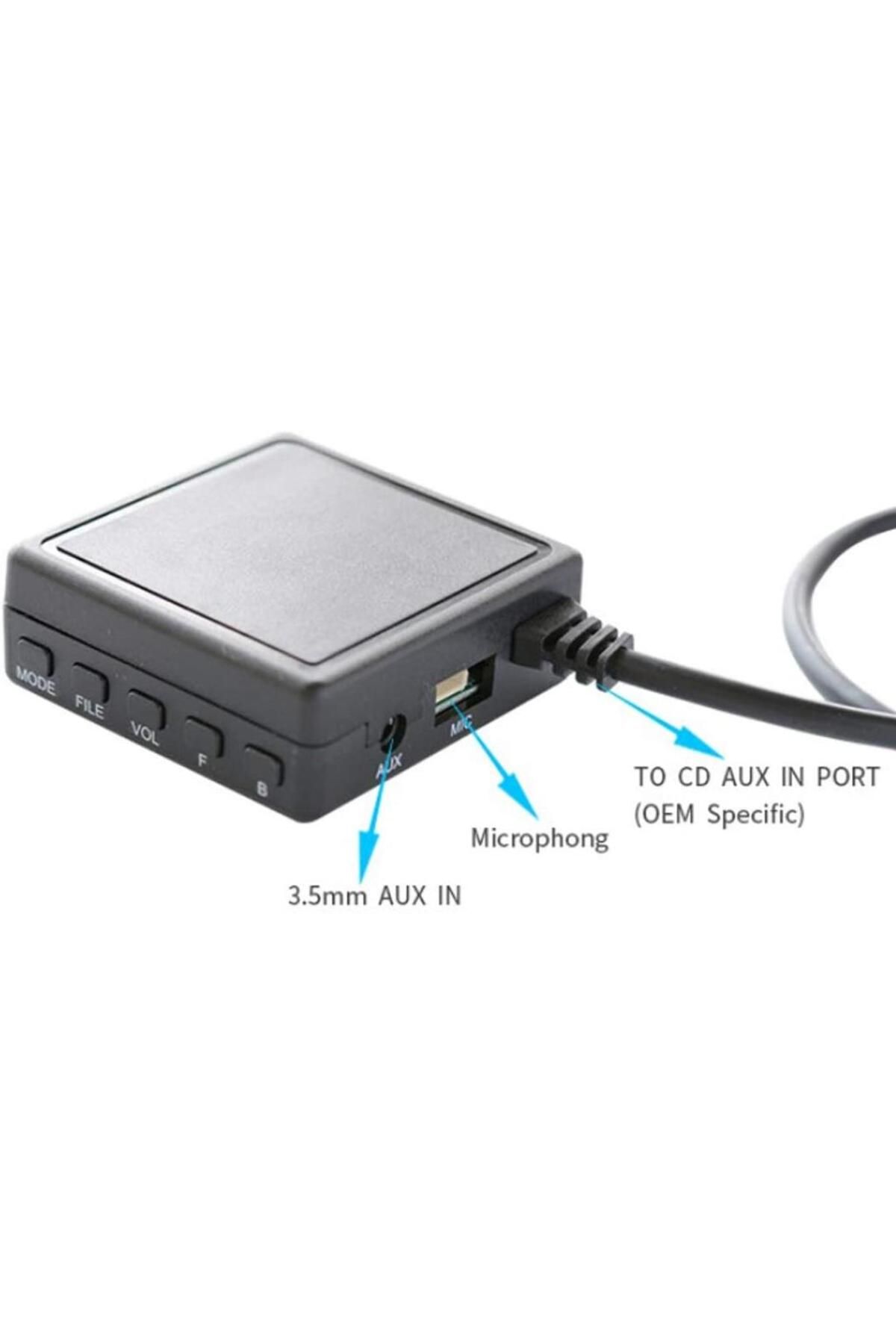

Techmaster Opel Astra Zafira Tigra Cd30 Bt 5.0 Aux Adapter with Microphone Sku7 Usb Tf Card Input

Product description opel astra zafira tigra cd30 bt 5 0 aux adapter with microphone sku5 usb tf card input You can play music from the phone in your car You can follow the songs from the control panel You can use tf card to play music

You can use a usb flash drive to store songs and have a 3.5mm aux-in connector

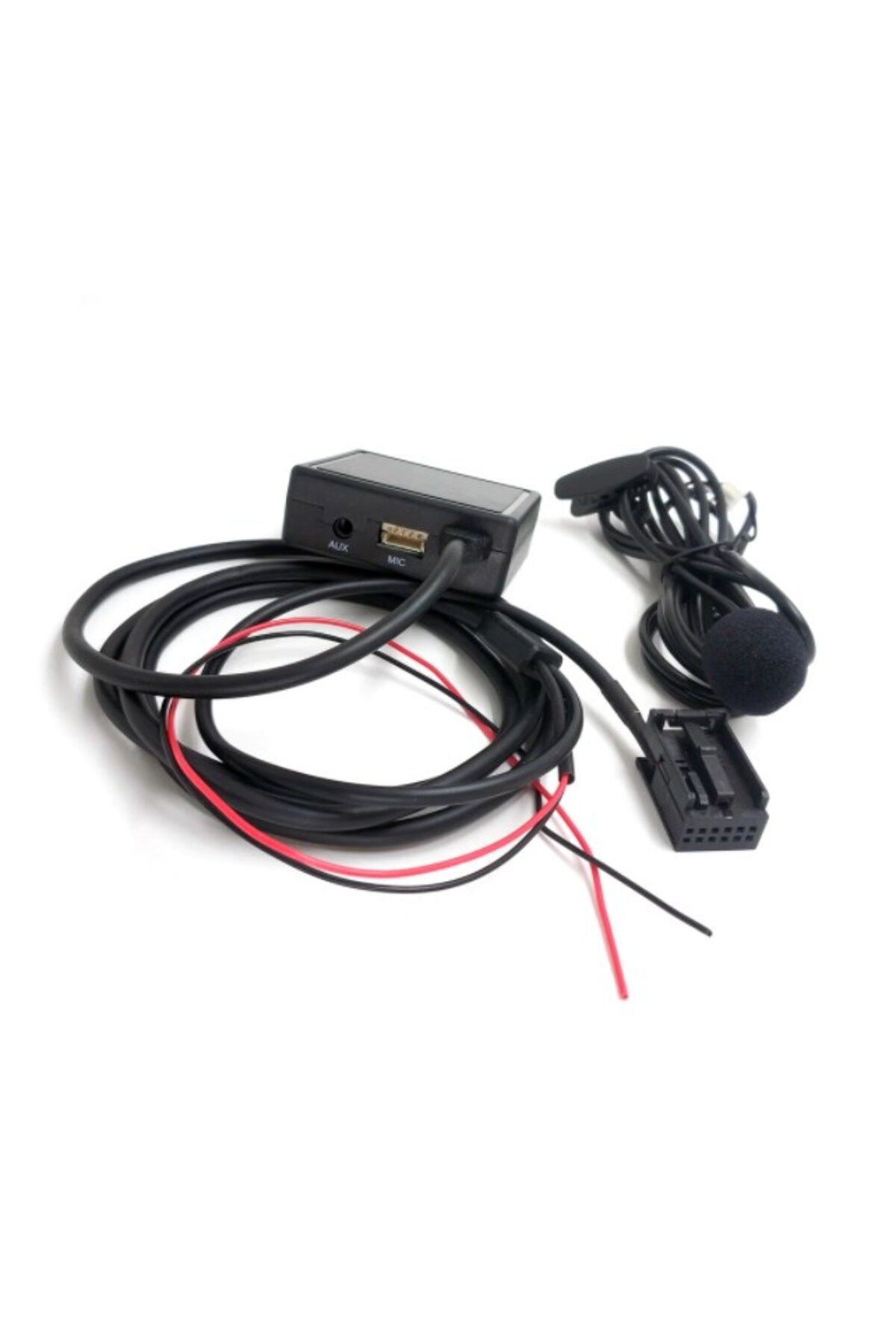

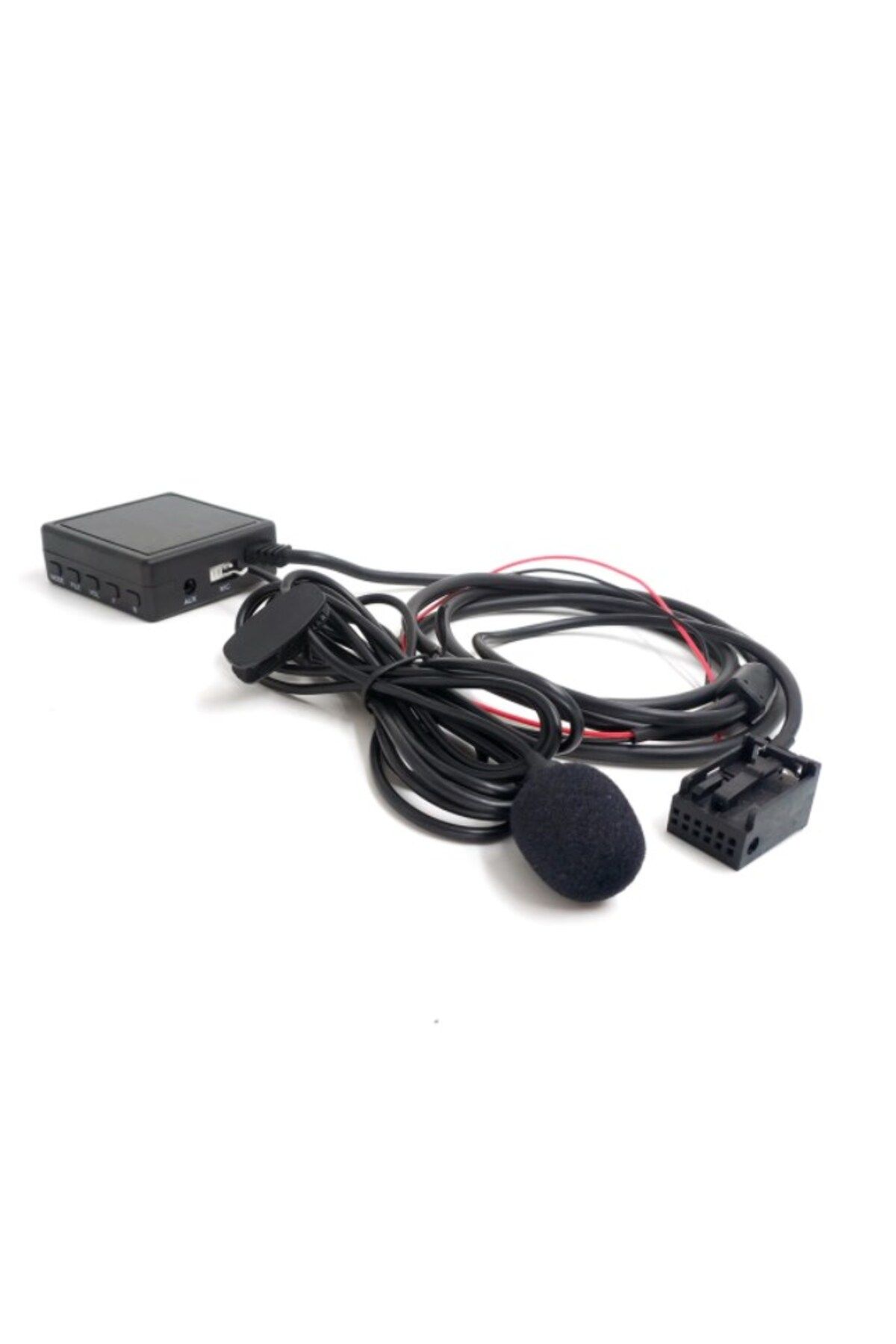

You can make hands-free phone calls with the microphone Specifications: 1 x bluetooth module 1 x microphone cable 1 x red cable 12v + (positive pole) 1 x black cable 12v (negative) cable length: 150cm microphone cable length: 190cm bluetooth: 5 0 version range: 5 m installation method: step 1

Take out the cd player, insert the adapter connection into the corresponding audio interface on the back of the cd player

Red power wire to 12v+, black power wire to 12v

Connected to the step 2

Bluetooth Your music adapter to your music interface (media In) step 3

Need to turn on your bluetooth, search until you see “jieribt5708”

Click on the bluetooth device and click on pairing

Step 4 Put your radio in aux mode

Cd change function retained

Compatible with the following models cd30 mp3, cdc40 opera, cd70 navi, dvd 90navi opel astra: 2004

2009 opel zafira : 2005

2011 opel tigra: 2004

2009 product information brand techmaster package content 1 piece product images
