vcx wattmeter socket energy consumption indicator

Product description

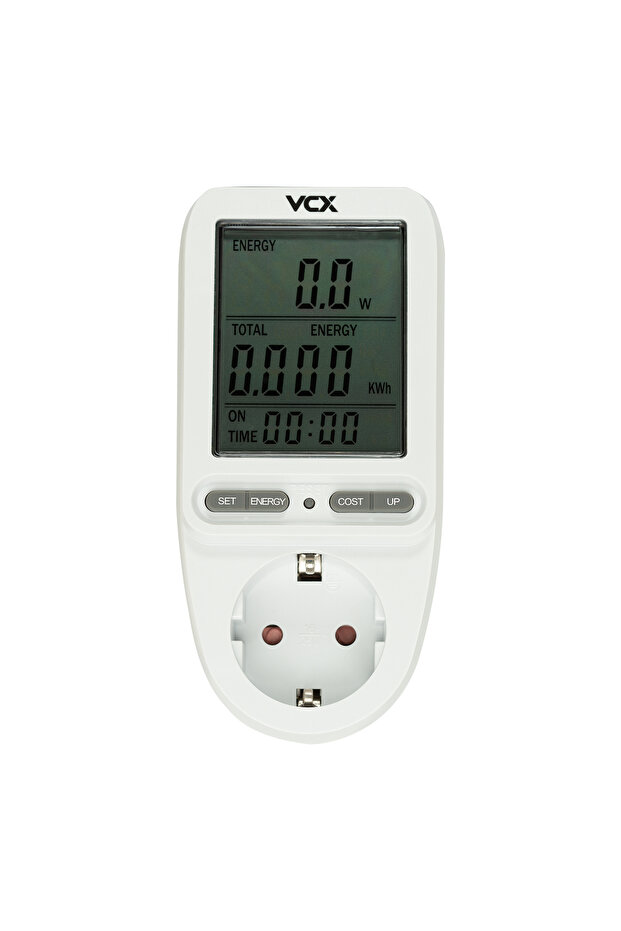

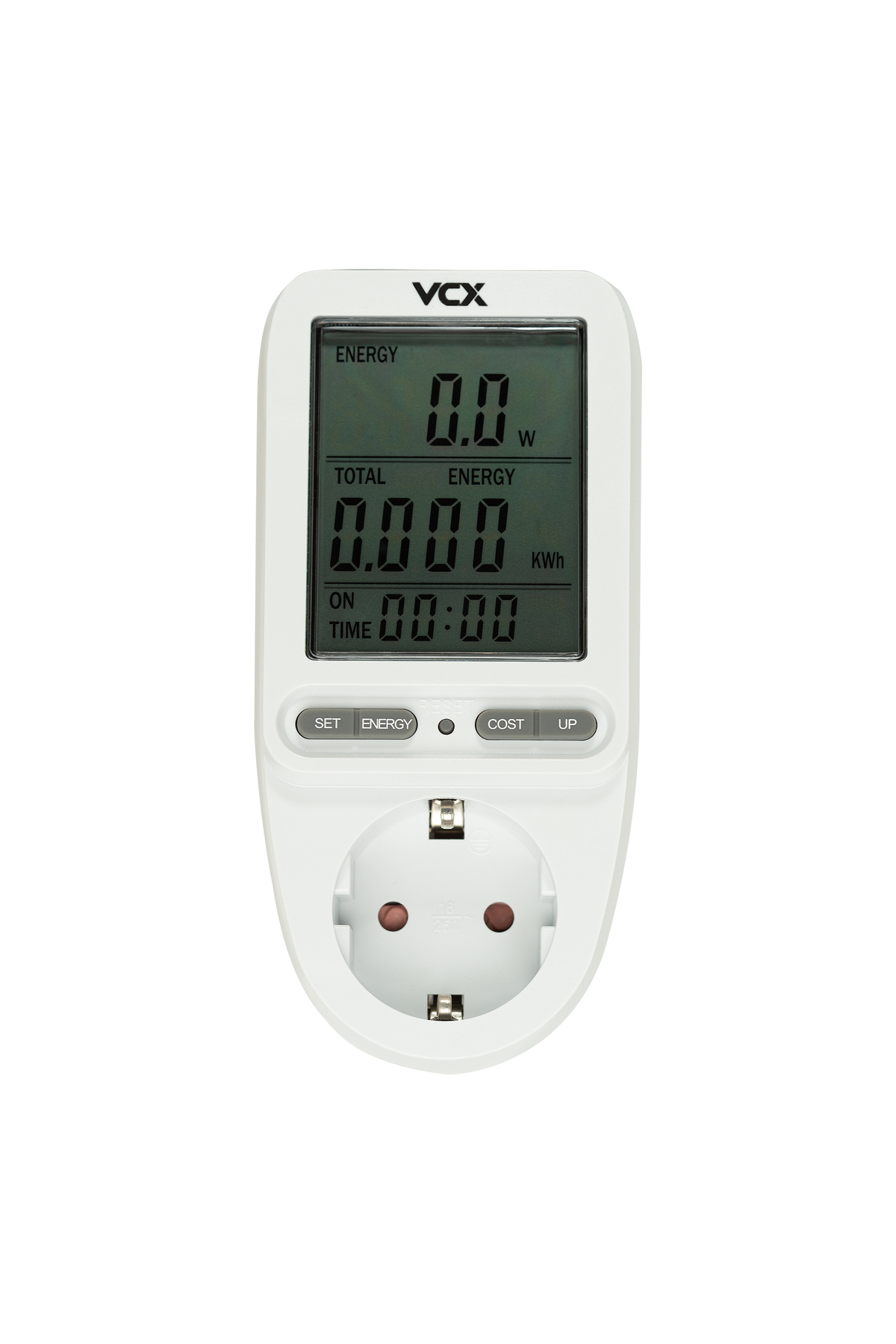

WATTMETER – SOCKET WITH ENERGY CONSUMPTION INDICATOR VCX JGQ01S-01 The energy meter plug measures the energy consumption (and calculates running costs) of your home appliances.

This helps reduce your energy bills and carbon , as you can determine which appliances are using the most electricity and then find ways to reduce it.

Before connecting this device, please read the following instructions carefully.

Careful: – Do not connect two or more devices together! – For indoor use only! – Do not connect the energy meter in a way that makes it difficult to disconnect from the power source! – Do not connect a device that exceeds 16 A.

Always make sure that the device plug is fully inserted into the outlet.

If cleaning of the meter is necessary, disconnect it from the electrical network and wipe the meter with a dry cloth.

Reset: If an incorrect display appears or the buttons do not respond, reset the device.

To do this, press the RESET button.

Display mode: The full LCD screen will be displayed for about 1 second after connection, then automatically switches to display mode.

The LCD screen displays the power on the first line.

Press "ENERGY" to change the reading.

The data is displayed as follows: Power → Voltage → Current → Frequency → Power Factor → Power 1. Power display range: 0.0 W~9999 W 2. Voltage display range: 0.0 V~9999 V 3. Display range Current range: 0.000 A~9999 A 4. Frequency display range: 0 Hz~9999 Hz 5. Power factor display range: 0.00~1.00 OVERLOAD INDICATION: When the unit is loaded above 3680W, a warning will appear on the POWER screen and flash.

The second line of the LCD screen displays the cumulative energy cost.

Press "COST" to display the following data: Total electricity cost kWh → Total electricity cost → Total CO2 → Total operating time per day → Electricity cost €/KWh → Total cost of electricity kWh.

Display units: 1, Total electricity consumption: 0.000kWh~9999kWh, 2, Total cost range: 0.00€~9999€ 3, CO2 range: 0.00-9999kg 4, Total running time: 0-9999 days 5, Electricity cost setting range: 00.00€/KWH~99.99€/KWH Press the "SET" button for 3 seconds to enter the €/KWH electricity cost setting.

Press "UP" to set.

Press "SET" to select the next value.

Press "COST" to exit the setting.

** The device will automatically return to the basic interface after 10 seconds of inactivity.

The third line of the LCD screen displays the total time.

After connecting, the 0:00 indication indicates the minutes (2 digits will appear after 10 minutes), and the remaining digits indicate the seconds.

After 60 minutes, it displays 0:00 again, the first two digits indicate the hour (2 digits will appear after 10 hours), and the remaining digits indicate the minutes.

Specifications: Operating voltage: 230VAC/50Hz Operating current: max.

16A Operating voltage range: 150VAC~276VAV Time display range: 0 seconds~9999 days Power display (W): 0.0W~9999W Voltage display range: 0.0V~9999V Current display range (A): 0.000A~9999A

Frequency display: 0Hz~9999Hz

Price display range: 00.00€/KWH～99.99€/KWH

kWh display: 0.000KWH ~ 9999KWH Total cost displayed: €0.00 ~ €9999 Range CO2 display: 0.00 ~ 9999 kg Environmental tips.

• The product may only be disposed of by authorized entities.

• Do not throw away, do not dispose of
