Color:683 Red

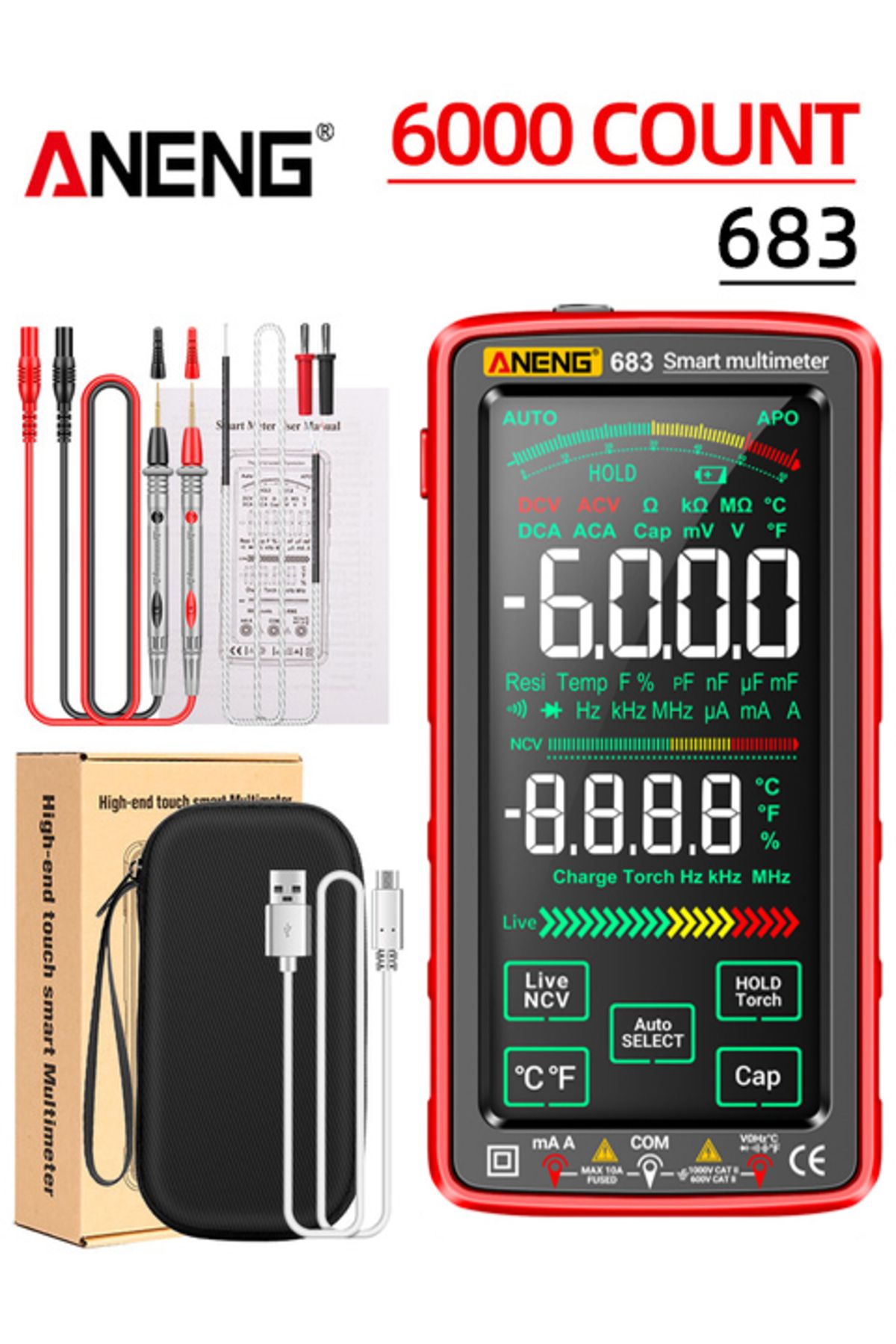

ANENG 683 Smart Multimeter High-end Touch 6000 Counts Multimetro Test Rechargeable Multitester AC/DC Voltage Tester Current Tool

Introduce:
This device is a 3 5/6 digital multimeter with stable performance and realiable quality.The meter adopts LCD display screen with analog bar display.Users in the process of use,truly achieve continuous power operation,do not need to turn the dial to select functions.According to the input ac/DC voltage/resistance will be automatically identified and measured.
It can be used to measure DC voltage,AC voltage sine RMS,DC Current,AC current sine RMS,resistance,capacitance,live-line indication,duty ratio,diode on/off test,symbol unit ,data hold and automatic power off.
The meter is equipped with a high-capacity rechargeable batteries with full function and accurate measurement.The multimeter is an ideal tools for laboratory,factory,radio enthusiasts and household.

Summary:
Manual Range and Auto Range
Full range overloaded protectection
The maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V AC

Fuse Protection:uA/mA
Display:6000 Counts LCD monitor with analog bar
Battery Type:3.7V/2800mA rechargeable battery

Specification:
DC Voltage:

Measuring Range	Resolution	Accuracy
6V/60V	0.001V/0.01V	+-(0.5% readings+3digits)
600V/1000V	0.1V/1.0V	+-(0.8% readings+10digits)

AC Voltage:

Measuring Range	Resolution	Accuracy
6V/60V	0.001V/0.01V	+-(0.8% readings+3digits)
600V/750V	0.1V/1.0V	+-(1.0% readings+10digits)

AC and AC Current

Measuring Range	Resolution	Accuracy
6000mA	1mA	+-(1.0% readings+5digits )
10A	0.01A	+-(2.5% readings+10digits )

Resistance

Measuring Range	Resolution	Accuracy
600Ω/6kΩ/60kΩ/600kΩ	0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ	+-(0.8% readings+3digits)
6MΩ	0.001MΩ	+-(1.2% readings+3digits)
60MΩ	0.01MΩ	+-(2.5% readings+5digits)

Capacity

Measuring Range	Resolution	Accuracy
60nF/60nF/6uF/60uF/600uF/6mF	0.01nF/0.1nF/0.001uF/0.01uF/0.1uF	+-(4.0%Readings+20 digits)
60mF	0.01mF	+-(5.0%Readings+5 digits)
100mF	0.1mF	for reference

Frequency

Measuring Range	Resolution	Accuracy
9.999Hz/99.99Hz/999.9Hz	0.001Hz/0.01Hz/0.1Hz	+-(0.8% readings+3digits)
9.999kHz/99.99kHz/999.9kHz	0.001kHz/0.01kHz/0.1kHz	+-(0.8% readings+3digits)

Temperature

Measuring Range	Resolution	Accuracy
-40℃-300℃	+-(1.0%+4d)	1℃
301℃-1000℃	+-(1.9%+5d)	1℃
-40 °F -600 °F	+-(1.2%+6d)	1°F
601 °F -1832 °F	+-(1.9%+6d)	1°F

Diode Test	Yes	Circuit on/off Test	Yes
Data Hold	Yes	Automatic power off	Yes
Torch	Yes	NCV Test	Yes
Buzzer	Yes	Firing line Test	Yes

Package Included:
As the picture showed

ANENG 683 Red 683 Smart Multimeter High-end Touch 6000 Counts Multimetro Test Rechargeable Multitest
