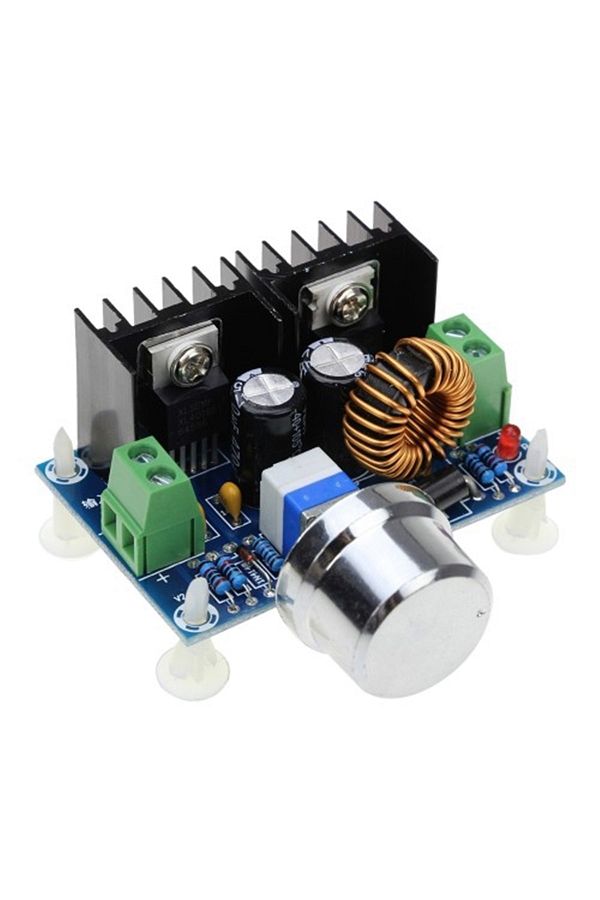

Arduino Xl4016 8a Dc-dc Step Down Voltage Reducer Regulator

Xl4016 8a dc-dc step down voltage regulator is a voltage regulator that can reduce the input voltage value between 4-38v to a voltage value between 1.5-36v. The voltage of the xh-m401 voltage reducer can be easily adjusted with the trimpot on it. The product is resistant to a maximum of 8 amps, and up to 5 amps in continuous use. Over current protection, over temperature protection and short circuit protection are available. Technical specifications voltage regulation mode: pwm modulation Input voltage: dc 4-38 v

Output voltage: dc 1. 25-36v Maximum current: 8a (add fan and must be used at less than 5a for long-term use)

Maximum power: 200w Conversion efficiency : 95%

Switching frequency: 180 khz

Working temperature: -45 ~ + 85 ?

size: 6x3.7cm/2.36x1.46inch
