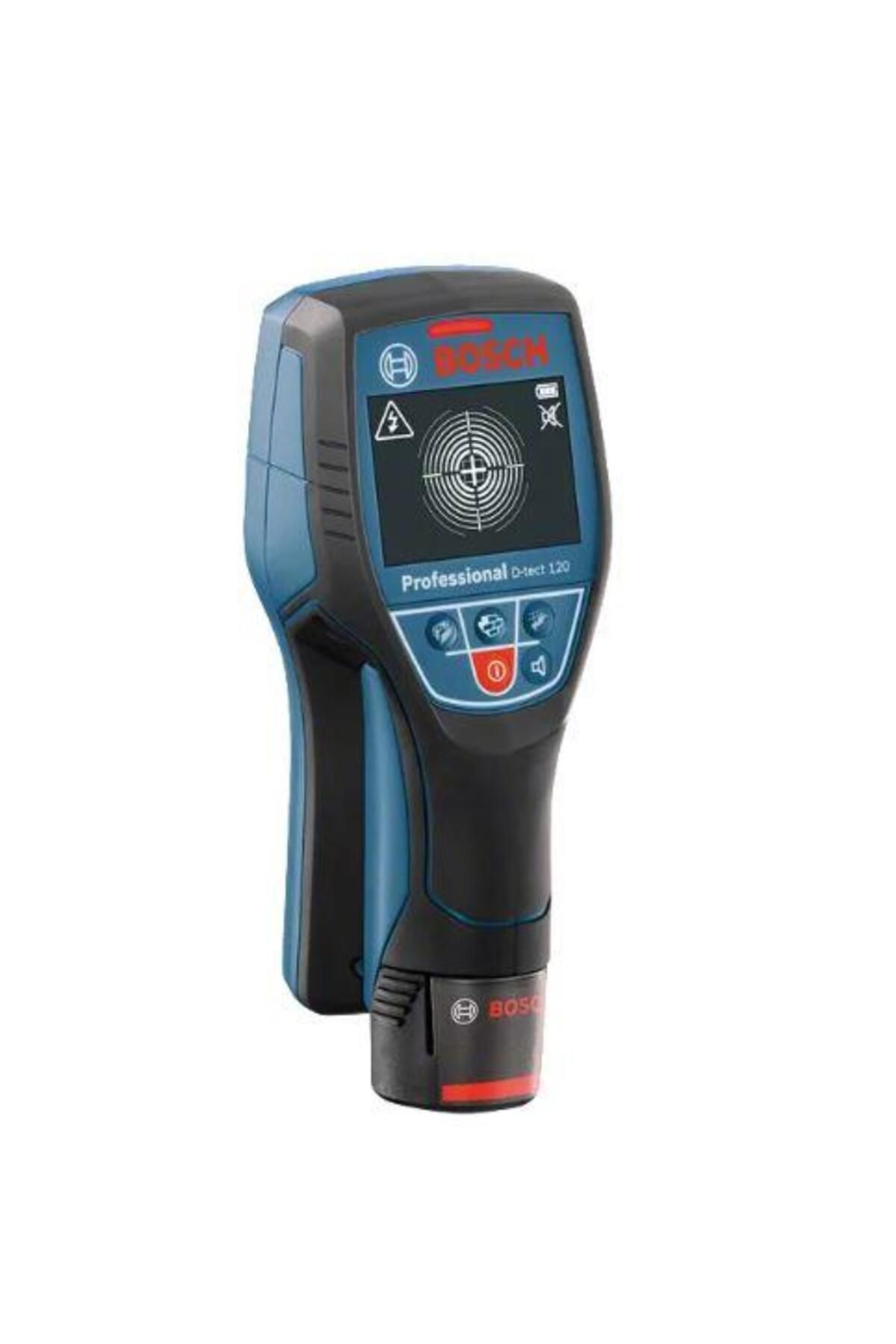

Bosch D-Tect 120 Wall Scanning Device

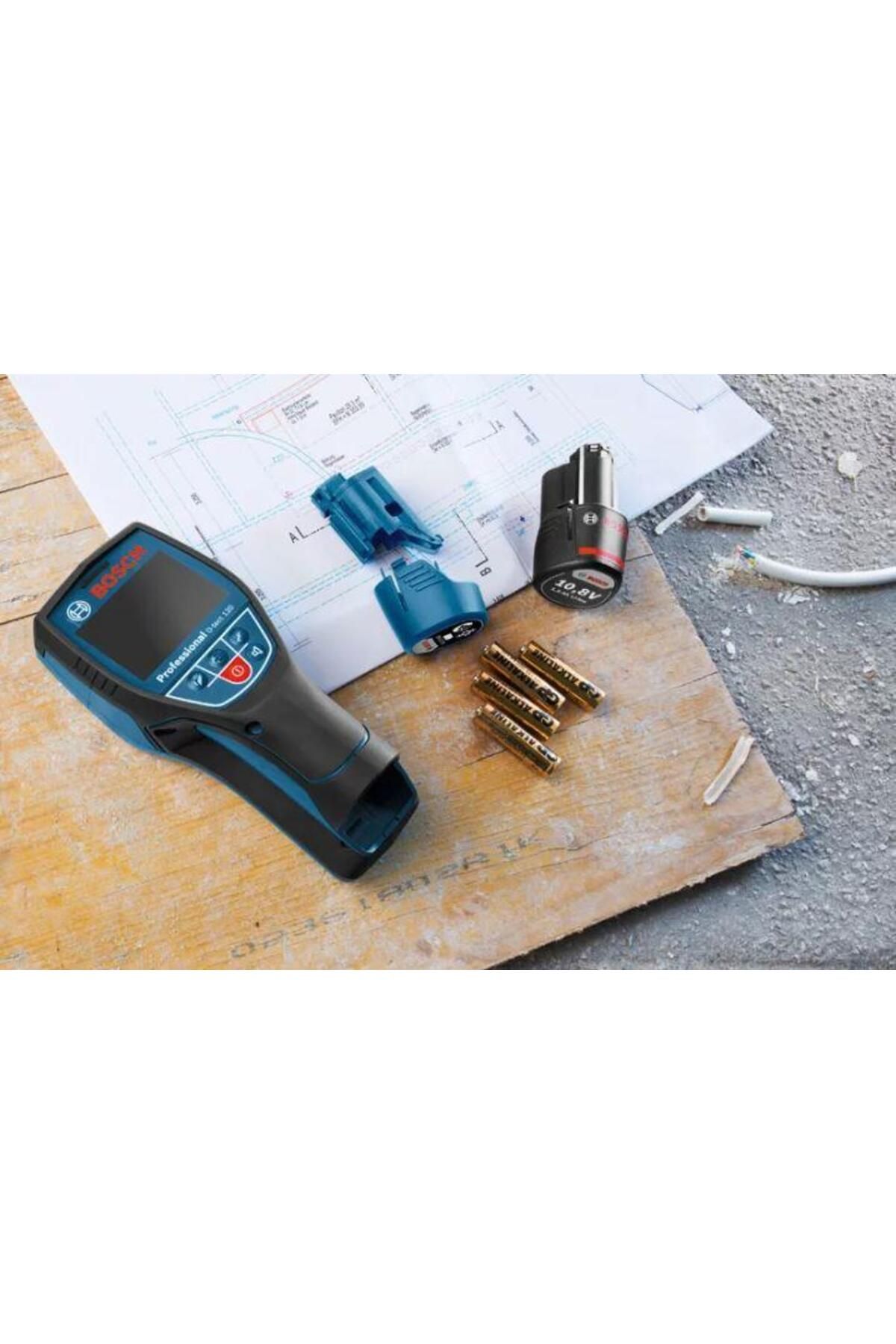

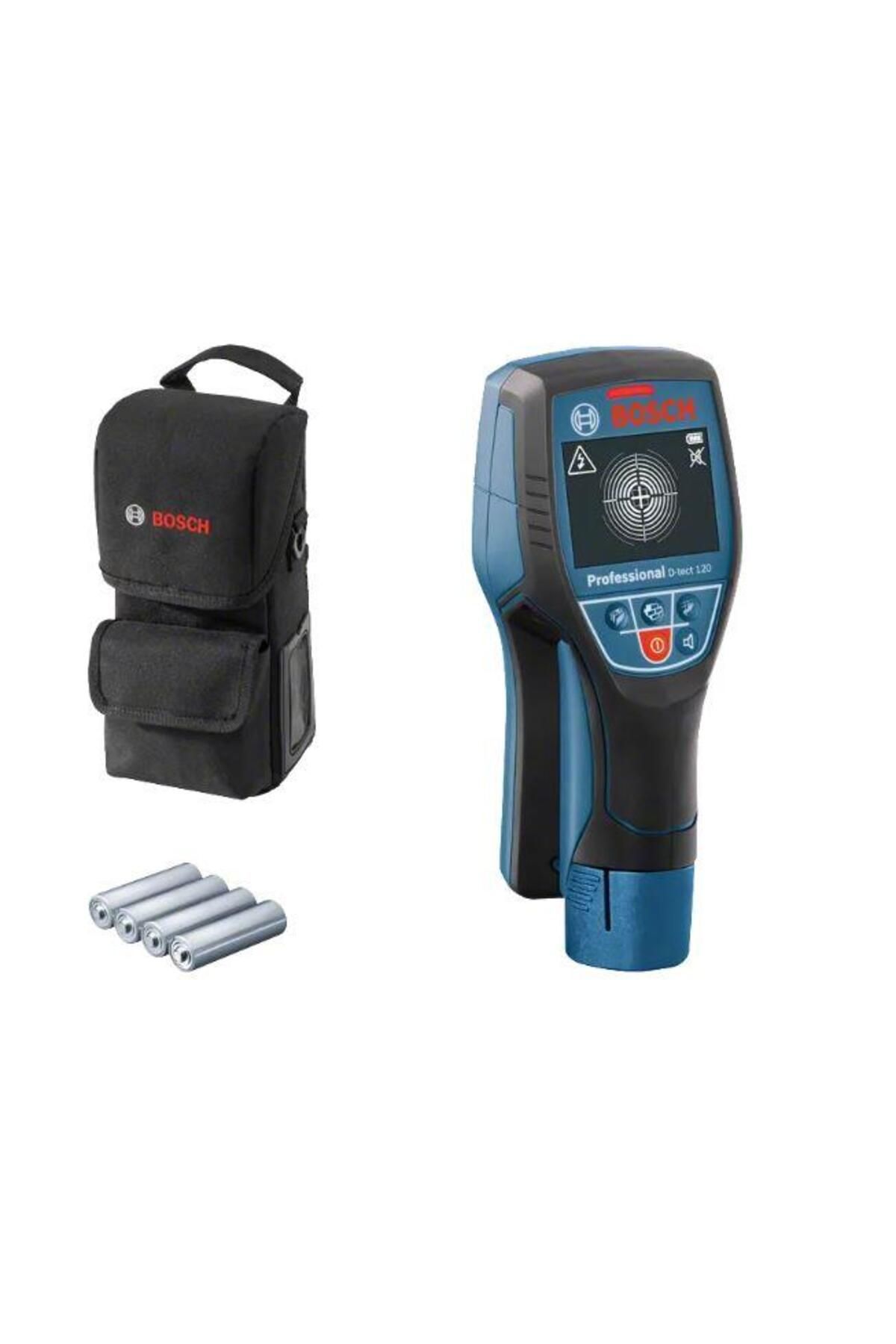

Bosch d-tect 120 wall scanning device material number 0 601 081 303barcode 40599526415084 x battery 1.5 v lr6 (aa) ✓ Aa1 alkaline battery adapter 1 608 m00 c1b ✓ Bag ✓ Technical databattery voltage 12,0 v.bosch radar technology :yesdetectable objects: magnetic metals (e.g.

iron) non-magnetic metals (e.g.

copper)cables transmitting voltagecables not transmitting voltage plastic pipes filled with water wooden substructuresmax.

scan depth: 120mmdetection depth, magnetic metal, max.

: 120 mmdetection depth, non-magnetic metal, max.

:120 mmdetection depth, current-carrying cables, max.

:60 mmdetection depth, wooden sub-constructions, max.

:38 mmaccuracy: ± 10 mm* (*plus deviation depending on use)viewings: dot viewtypes of walls: wall of concrete plaster universalmaterial designation: cable carrying electricitycurrent supply :12 v li-ion or 4 x 1.5 v lr6 (aa)current cut-off automatic, approx.: 5 minutesweight, approx.

: 0.5 kgadditional function: dual power (10.8 v / 4 x 1.5-vlr6 aa)

center finder with object direction indicatoruser advantagesthe point measurement feature provides precise location finding in narrow spaces.

the center finder provides visual guidance to smoothly determine precise location to the center of the object.

dual power source technology for increased flexibility allows the use of both 12 v lithium ion battery and standard alkaline battery.
