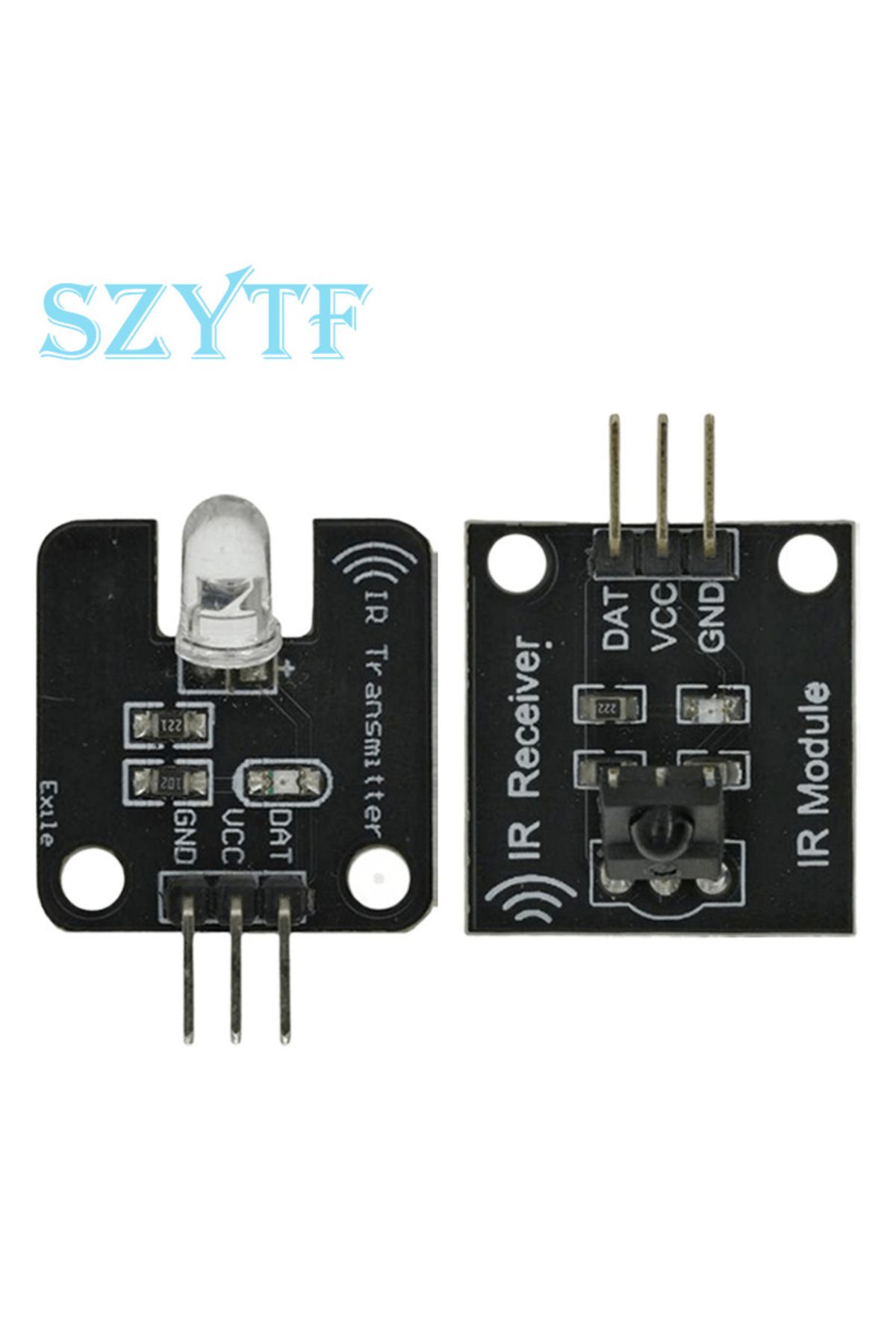

Choice 1set Ir Infrared Transmitter Module Ir Digital 38khz Infrared Receiver Sensor Module For Arduino Ele

Customers love it!

Read reviews

Special Deals

19.5617.60AED
  • Pay in 4 interest-free payments of 4.40 AED.

  • Pay up to 4 interest-free payments starting from 4.40 AED.


Payment methods
Payment method
Payment method
Payment method
Payment method
Payment method
Payment method
Payment method
Payment method
left arrow
right arrow
Big Save Store
11.6K followers
Seller's store

Product information

Other Features: *1set

Product features

Color:1set


1. Infrared emission module:

  • Supply voltage: 5V

  • Working environment: -25~+85C

  • Storage temperature: - 30! 10OC

  • Wavelength: 940mm

  • Signal type: Digital signal

  • Infrared central wavelength: About 850nm-940nm

  • Infrared emission distance: About 1.3 m (5V 38khz)

  • Infrared emission Angle: About 20 degrees

  • Module weight: 1.5 g

  • Modules only store: 23.5 * 20.8 mm

  • Positioning hole size: 3mm

Wiring instructions:

  • DAT: indicates the digital output interface

  • VCC: positive terminal of the 5VDC power supply

  • GND: The negative pole of the 5VDC power supply


2. Infrared receiving module:

  • Supply voltage: 5V

  • Working environment: -25~+85C

  • Storage temperature: - 30! 100C

  • Carrier frequency: 940mm

  • Signal type: Digital signal

  • Infrared emission distance: About 10 meters

  • Infrared emission Angle: About 35 degrees

  • Module weight: 1.5 g

  • Modules only store: 23.5 * 20.8 mm

  • Positioning hole size: 3mm

Wiring instructions:

  • DAT: digital output interface

  • VCC: positive terminal of the 5VDC power supply

  • GND: The negative pole of the 5VDC power supply
