Product features

Mainly Push The Most Popular Products

1.5 Inch OLED Screen 4PIN
Functions & Features
Dot Matrix: 128X128 Dots
Mode: Positive
Monochromatic positive OLED panel with 256-level contrast control
Interface: IIC
Module input voltage (module pin 2 VDD): 3.3V~5V
Working temperature: -30℃~85℃
Storage temperature: -40℃~85℃
Connection method/driver IC: COG/SH1107G-02
Mechanical specifications

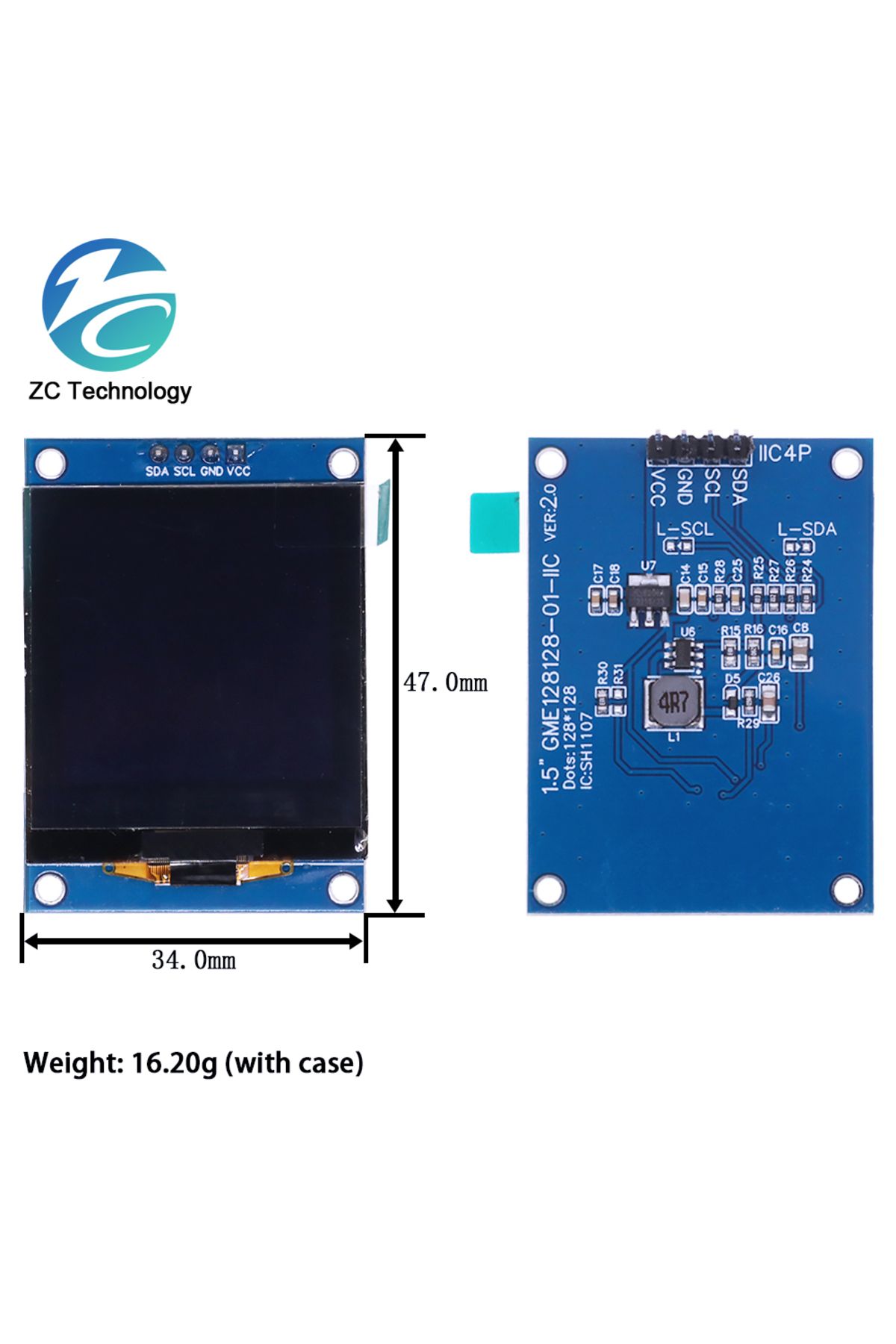

Module size: 34.0mm(L)*47.0mm(W)*11.1Maxmm(T)
Visible area (V/A): 28.86mm(L)*28.86mm(W)
Effective area(A/A): 26.86mm(L)*26.86mm(W)
Point distance: 0.21mm(L)*0.21mm(W)
Dot size: 0.185mm(L)*0.185mm(W)
