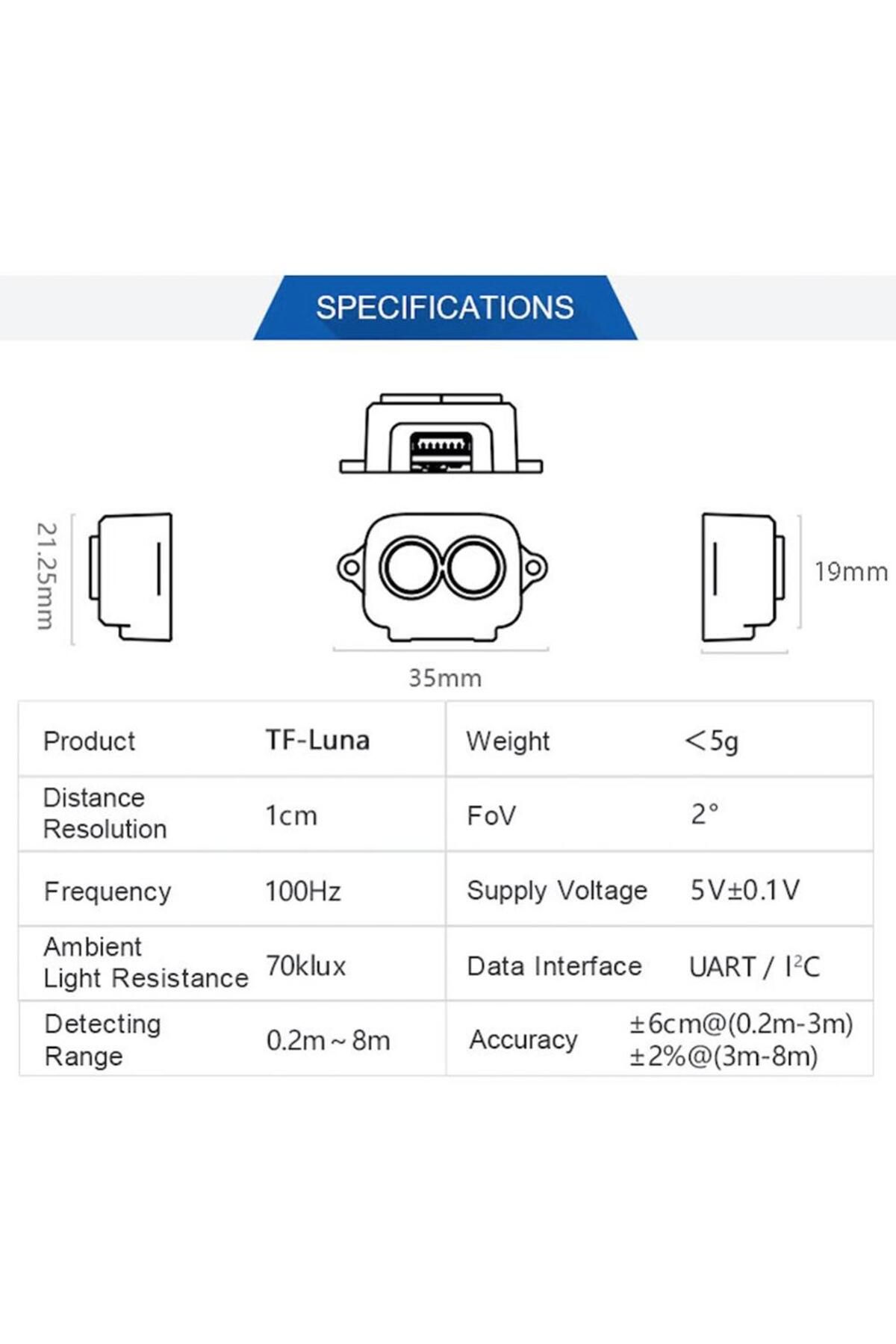

Description:
Operating range: 0.2m~8m
Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
Measurement unit: cm
Range resolution: 1cm
FOV: 2°
Frame rate: 1~250Hz( adjustable )
Supply voltage: 5V±0.1V
Average current: ≤70mA
Peak current: 150mA
Average power: 350mW
Communication level: LVTTL(3.3V)
Communication interface: UART/IIC
Default baud rate: 115200
Data bit: 8
Stop bit: 1
Parity check: None
Light source: VCSEL
Wavelength: 850nm
Operating temperature : -20°C~75°C
Certification:CE,FCC,ROHS

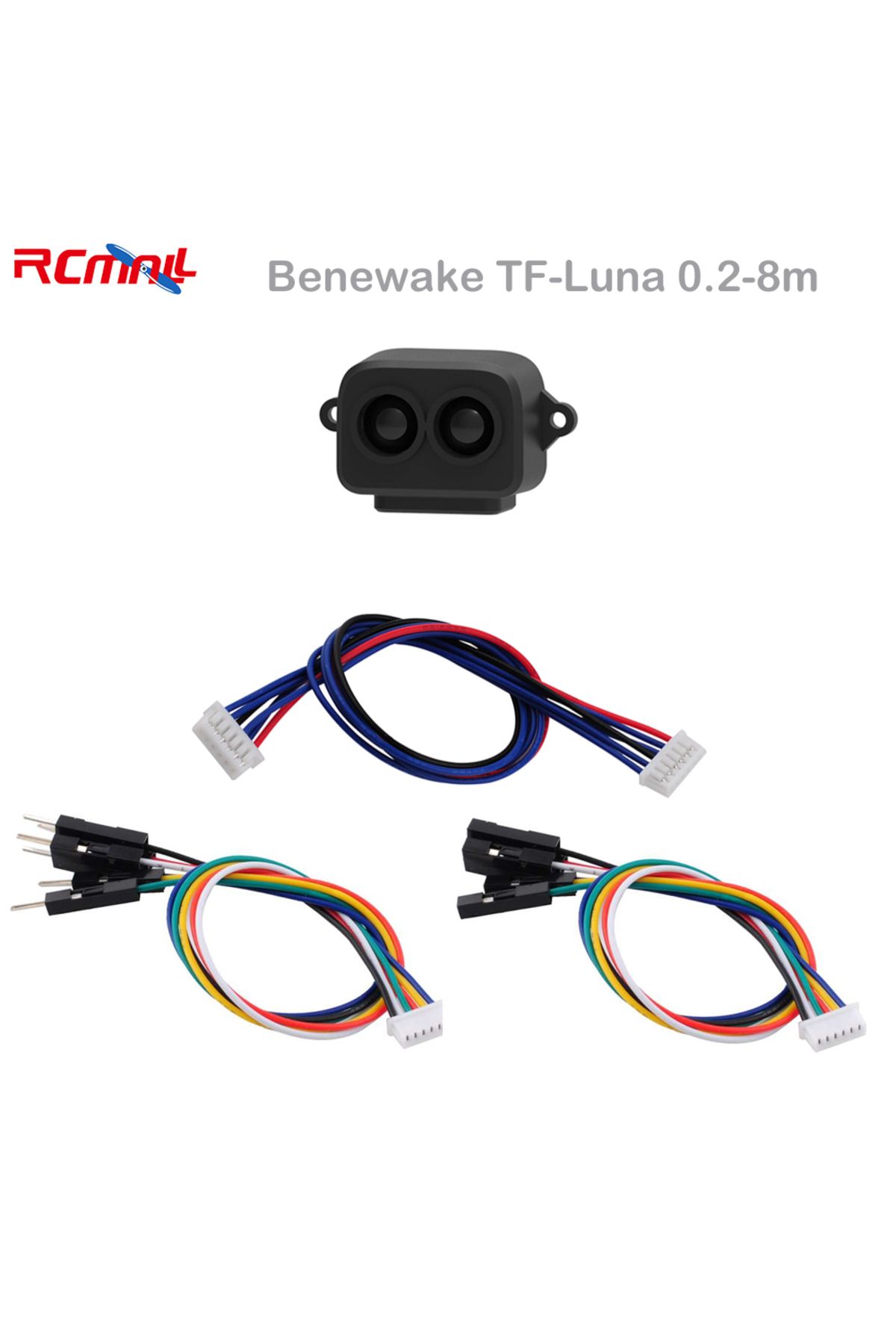

Package Includes:

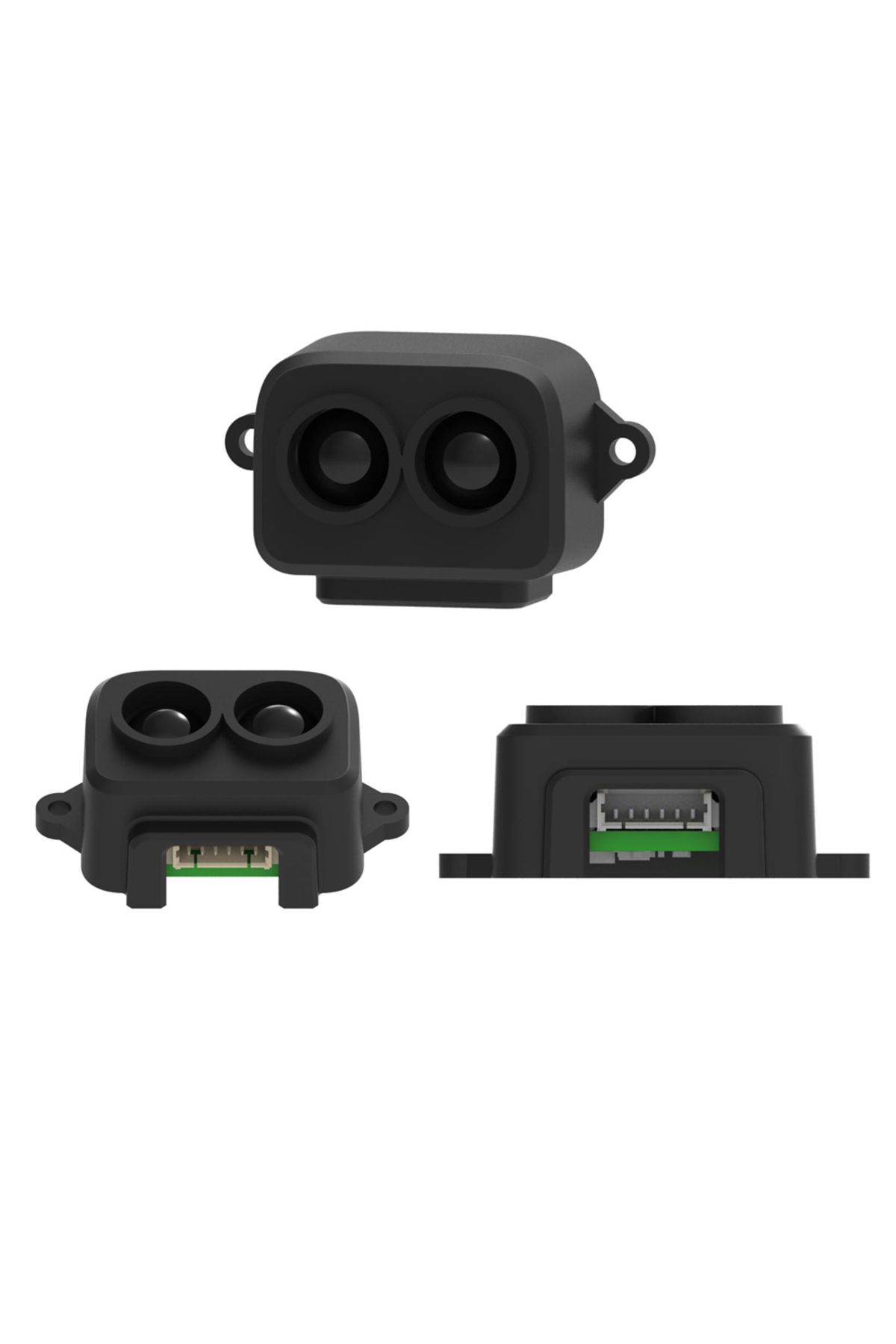

1 X TF-Luna LiDAR Module
3 X 1.25mm 6P cable
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument
FAQ
Q1: Is TF-Luna available with 3.3V or other power supply voltage?
A1: Sorry, it is not available for the time being. The Standard power supply of TF-Luna is 5V±0.1V. If you have any further requirement, please contact our sales person to consult a customization design matter.
Q2: TF-Luna will heat up after operating for a while. Is it broken?
A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case.

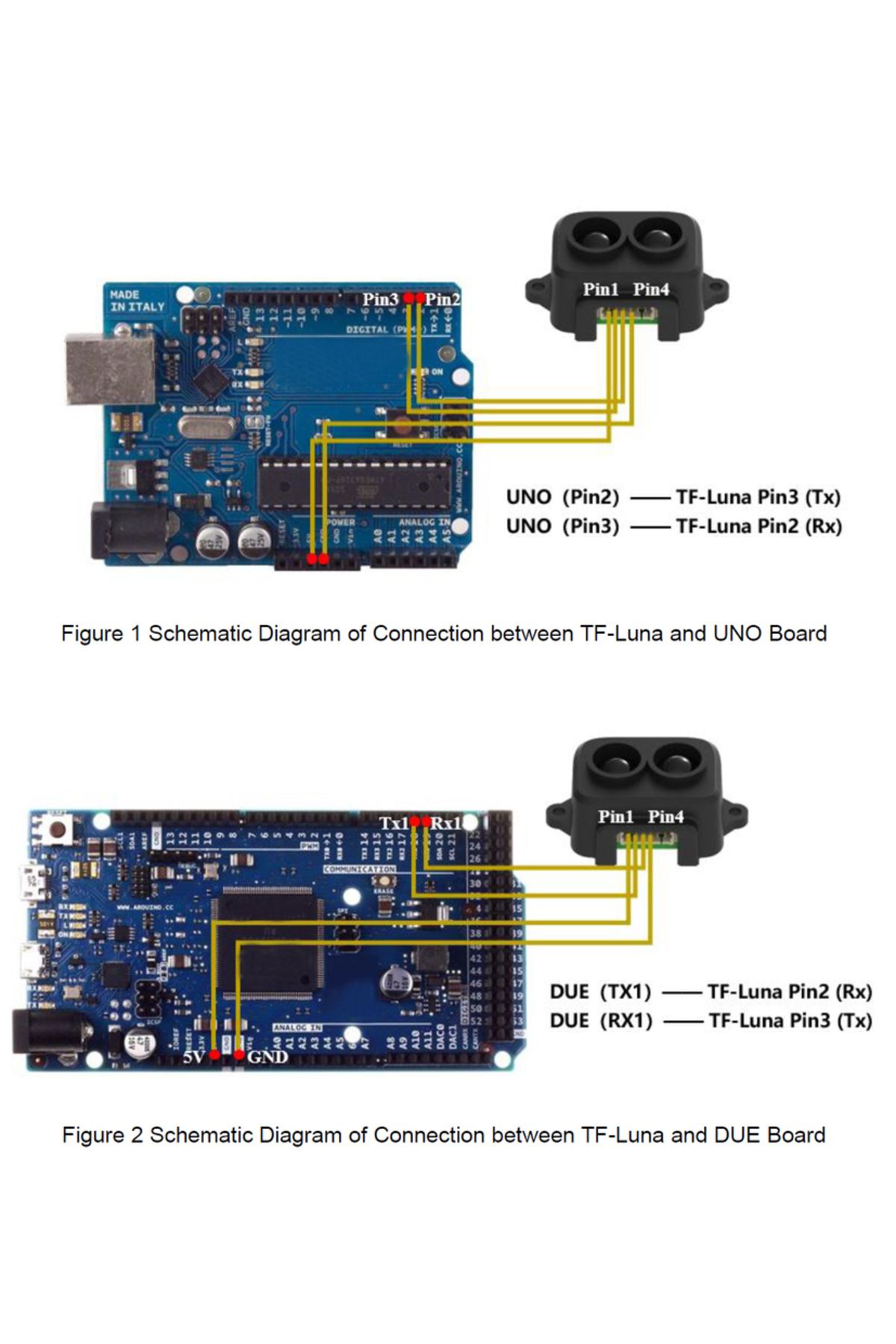

Q3: Can TF-Luna be connected with Arduino or Raspberry Pi for use?
A3: Yes, it can. TF-Luna adopts serial communication protocol so that it can connect to any control board supporting serial port communication.
