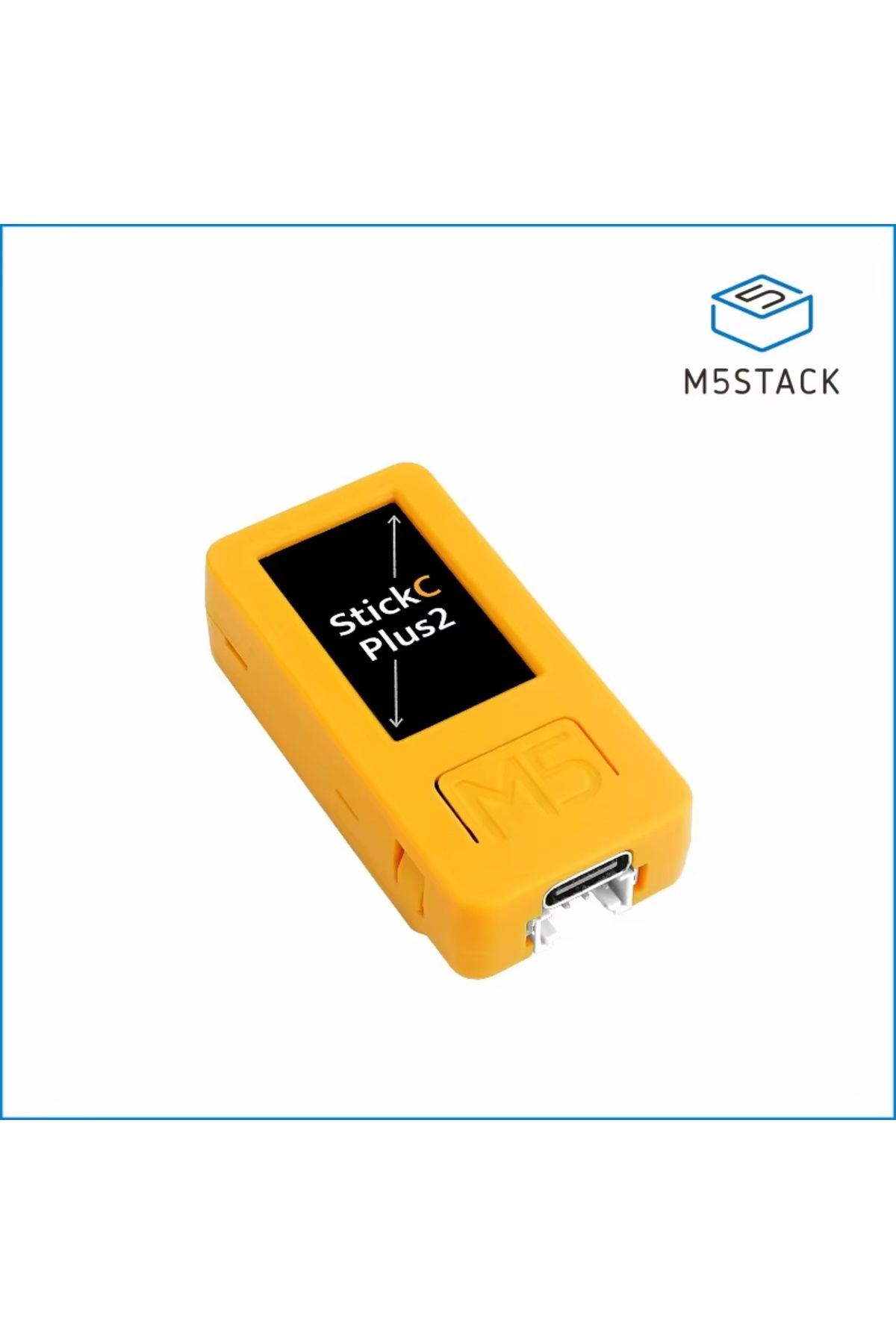

M5Stack M5StickC PLUS2 ESP32-PICO Mini IoT Development Kit IR and WiFi 1.14-inch TFTScreen IoT Controller
Product sellpoints
ESP32-PICO-V3-02 Chip:Equipped with the ESP32-PICO-V3-02 chip, this kit offers dual-core WiFi connectivity and ample flash memory for extensive IoT projects.
Original M5stickc Plus2 Esp32 Mini Iot Development Kit Wifi Ir 1.14-inch Tft Screen Iot Controller Esp32-pico-v3-02 Chip|1.14-inch TFT Screen:The 1.14-inch TFT screen with a resolution of 135*240 provides a clear display for your IoT applications.
Extendable Socket:Features an extendable socket, enabling easy integration with HAT and Unit series products for versatile development.
Built-in 6-Axis IMU:Includes a 6-Axis IMU, enhancing the device's sensing capabilities for motion tracking and environmental monitoring.
Wearable & Wall Mounted:Designed for wearable and wall-mounted applications, this kit is perfect for creating IoT terminal controllers and stem education products.
Description
M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.
M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.
Power on:
Wake up can be started by pressing "BUTTON C" for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.
Power off:
When there is no USB external power supply, press "BUTTON C" for more than 6 seconds; Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off.
Features
* ESP32- PICO- V3- 02-Base support WiFi
* Built-in 6-Axis IMU
* IR transmitter
* Microphone
* RTC
* Buttons, LCD(1.14 inch)
* Built-in Lithium Polymer Battery@200mAh
* Extendable Socket
* Built-in Passive Buzzer
* Wearable & Wall mounted
* Compatible with multi-platform development:
- UIFlow
- MicroPython
- Arduino
- .NET nanoFramework
Includes
1x M5StickC Plus2
Applications
* Internet of things terminal controller
* Wearable devices
* Stem education product
* DIY creation
Specifications:
Material: Plastic (PC)
Product Size: 48*25*13mm
Package Size: 114*64*23mm
Product Weight: 17g
Package Weight: 24.8g
Battery Capacity: 200mAh @ 3.7V
Features:
|Original M5stickc Plus2 Esp32 Mini Iot Development Kit Wifi Ir 1.14-inch Tft Screen Iot Controller Esp32-pico-v3-02 Chip|
**Versatile IoT Development Tool**
The Original M5StickC PLUS2 ESP32 Mini IoT Development Kit is a powerful and compact device designed for the creation of IoT projects. With its ESP32-PICO-V3-02 chip as the main controller, this kit is equipped with built-in WiFi functionality, enabling seamless connectivity to the internet. The device's 1.14-inch TFT screen, driven by the ST7789V2, provides a clear and responsive interface for users to interact with their projects. The M5StickC PLUS2 is not just a development kit; it's a platform for innovation, fostering creativity and learning in the realm of IoT.
**Seamless Integration and Ease of Use**
The M5StickC PLUS2 is designed for both beginners and experienced developers, offering a user-friendly environment for creating IoT applications. With support for multiple platforms including UIFlow, MicroPython, Arduino, .NET, and nanoFramework, the kit caters to a wide range of programming skills. The inclusion of a 6-axis IMU, microphone, and buttons enhances the device's functionality, making it a versatile tool for various IoT projects. The wearable and wall-mounted compatibility, along with its lightweight design, makes it a portable and convenient solution for IoT enthusiasts.
**Unleashing Creativity in IoT**
The Original M5StickC PLUS2 is an ideal choice for a variety of IoT applications, from creating internet of things terminal controllers to wearable devices for stem education. Its battery capacity of 200mAh ensures that the device can operate for an extended period without the need for frequent recharging. The extendable socket and built-in passive buzzer add to the kit's versatility, making it a reliable and efficient tool for IoT creators. Whether you're a student, a hobbyist, or a professional, the M5StickC PLUS2 is a compact powerhouse that will inspire and enable your IoT projects.
