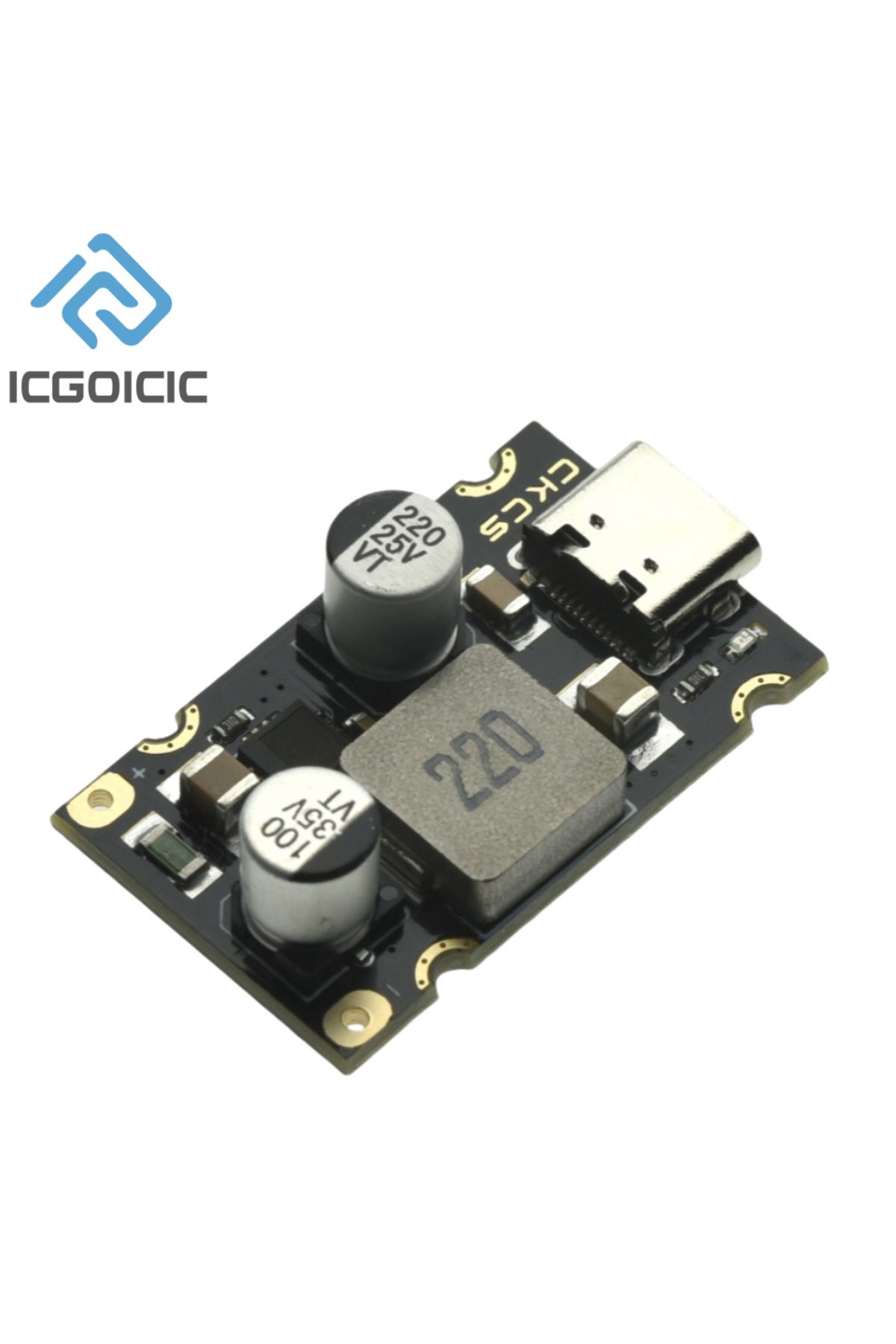

PD65W fast charge module
Type-C interface PD QCSCP PPS Fast
charge full protocoi charger module
Product features:
Supports PD3.1 (PPS), Qc3.0, and SCP
With protection function, input overvoltage and
undervoltage protection, input overcurrent
protection, output overcurrent short-circuit
protection, overtemperature protection=
Maximum output 20V 3.25A
Input 8~30V(step-down only)
DC type is divided into 5521 and 5525 two kinds,
5521: outer diameter
5.5mm, inner diameter 2.1mm; 5525: Outer
diameter 5.5mm,inner diameter 2.5mm.
Product parameters:
Input voltage :DC8~30V
Output voltage: Automatically adjust at 3.3V~21V
when connected to a TYPE-C compatible receiving
device (input voltage should be higher than output
voltage, if you want to trigger 20V fast charge, input
voltage should be higher than 20v)
Output power: 65w Max (5V3A,9V3A,12V3A,
20V3.25A, etc.)
Max output :20V 3.25A
Conversion efficiency :92%~97%
Output voltage ripple :<, 200mV
No-load current :< 3mA
Input overvoltage and undervoltage protection
Input overcurrent protection
Output overcurrent short-circuit protection
Overtemperature protection for the whole machine
Supported charging protocols :PD3.1(PPS), QC3.0,
Product size:
Standard model :32x20x10mm(excluding 1mm of
protruding C-socket)
With DC seat :44x20x10mm(excluding the
protruding 1mm of the C socket)
Supported charging protocols:
BC1.2, Apple protocol Qualcomm Oc2.0 and OC3.0
Huawei Fast Charge protocol FCP and SCP
Samsung Fast Charge Agreement AFC
MTK PE+1.1 and MTK PE+2.0PD2.0/PD3.1(PPS)
output protocols
Product application: All kinds of power supply
transformation fast charge output
Instructions for use:
If the 20 to 24V power adapter is used as the input, you
are advised to power on the power supply before
connecting to the module. Otherwise, the module may
fail to output 65W due to a slow power supply.
The DC model is divided into 5521 and 5525
5521: Outer diameter 5.5mm, inner diameter 2.1mm;
5525: Outer diameter 5.5mm, inner diameter 2.5mm.
The length of the DC model is increased by 12mm
compared with the standard model, which is 44mm, and
the Type-c mother seat and DC seat are about 1mm
protruding from the plate edge. The 5521 is also
compatible with the 5525 plug with tuning fork shrapnel
Product temperature rise and
output ripple:
Test conditions: input voltage 24V, ambient
temperature 24°C, load support PD65W laptop
(power about 50%), the computer run pressure test
to ensure that the power of the power end is full
65W.
