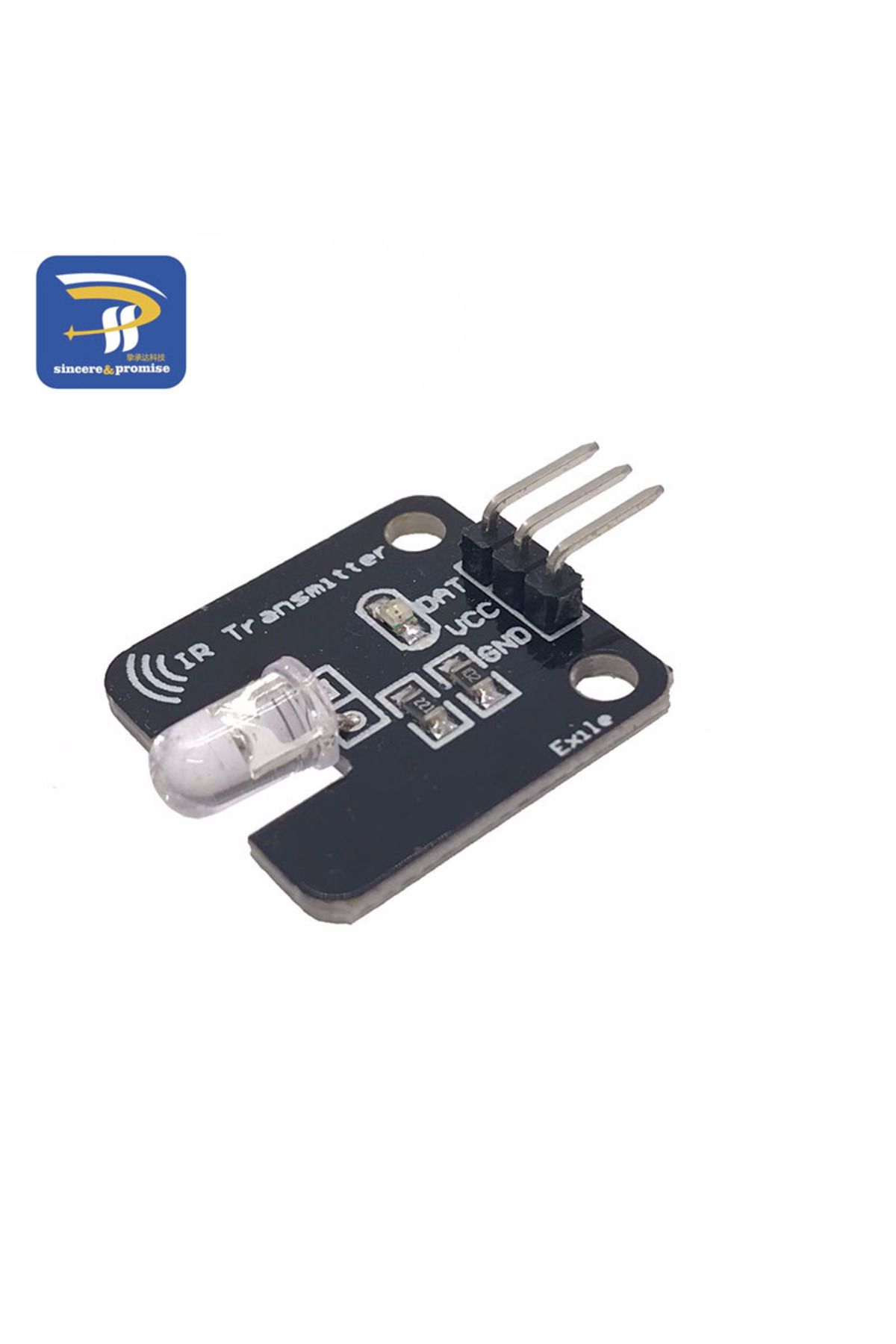

1 Way Transmitter specification:
Supply voltage: 5V
Working environment: -25 ~ + 85 °
Storage temperature: -30 ~ + 100 °
Wavelength: 940nm
Module size: 13.7mm × 27.8mm
Module weight: 1g
Signal type: digital signal
Infrared center wavelength: about 850nm-940nm
Infrared emission angle: about 20 degrees
Infrared emission distance: about 1.3 meters (5V 38Khz)
Size: 28 * 22mm
Weight: 3g
Voltage: 5V
Port: Digital level
Modulation: Direct transmission No modulation
Launch head: 2
Launch distance: 1-3m
Wavelength: 940nm
Double tube direct launch, through the program to carry out waveform modulation
With the launch signal to indicate the LED, easy to observe the debugging
Applicable to infrared communication, infrared remote control
IR Receivr module
specification
:
1. Adopt 1838 remote control receiver with high sensitivity
2. Working voltage 5V
3. Output form: digital output
4. There are 2 fixing holes for easy installation. Aperture 3.1mm
5. With data indicator
6. PCB size: 23.5*21.5mm
Wiring instructions:
1.DAT digital output interface
2.VCC 5V DC power supply positive
3.GND 5V DC power supply negative
