Choice Type-c Qc Afc Pd2.0 Pd3.0 To Dc Spoof Scam Fast Charge Trigger Polling Detector Usb-pd Notebook P...

Features:

1: stable performance

2: Simple installation

3: Wide application

4: Safe and reliable

5: Support 5V 9V 12V 15V 20V fixed voltage output

support induced

5V, 9V, 12V, 15V, 20V voltage

Fast charge support protocol: PD2.0/PD3.0, QC2.0/QC3.0, AFC

Support voltage: 5V, 9V, 12V, 15V, 20V (voltage step is not supported)

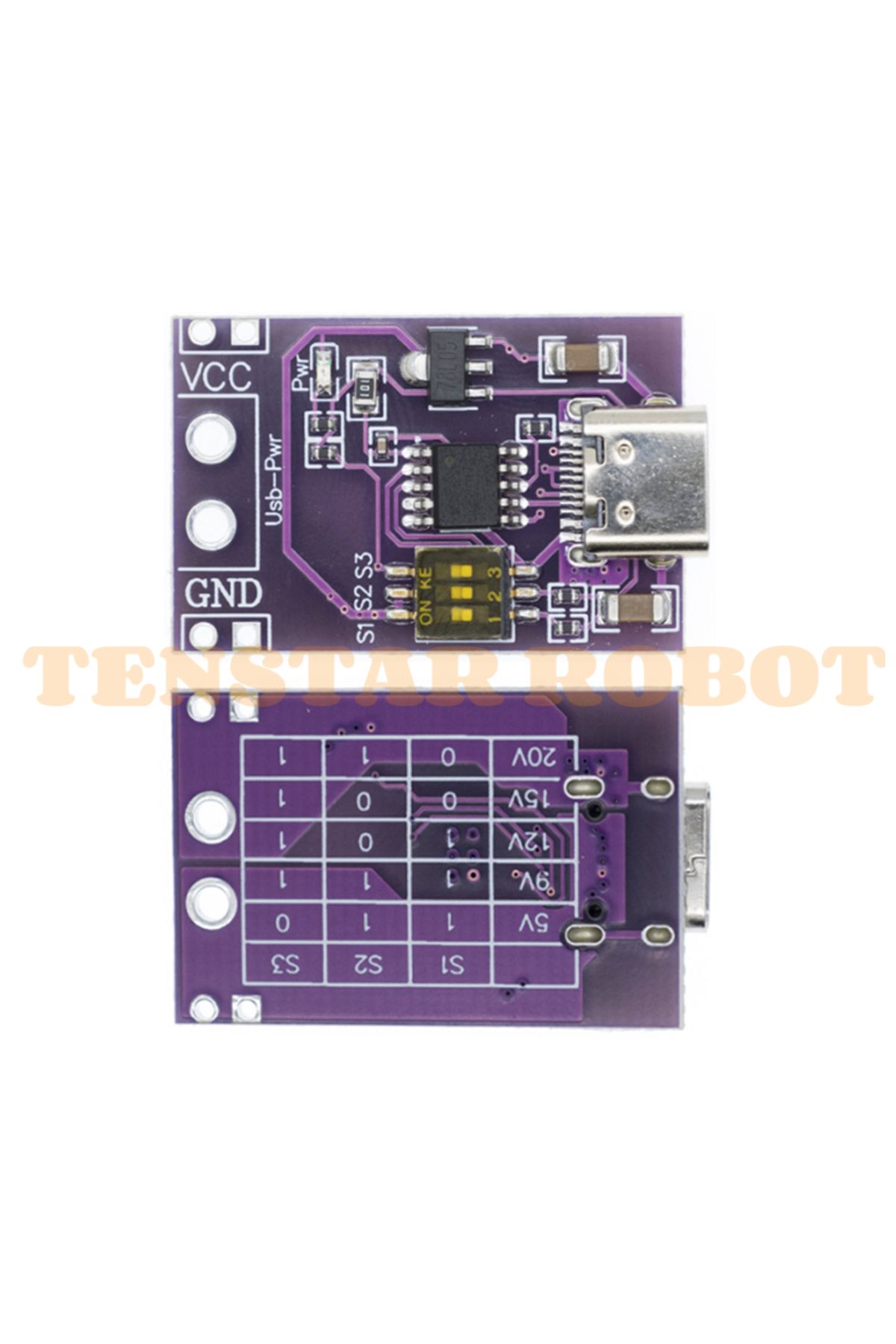

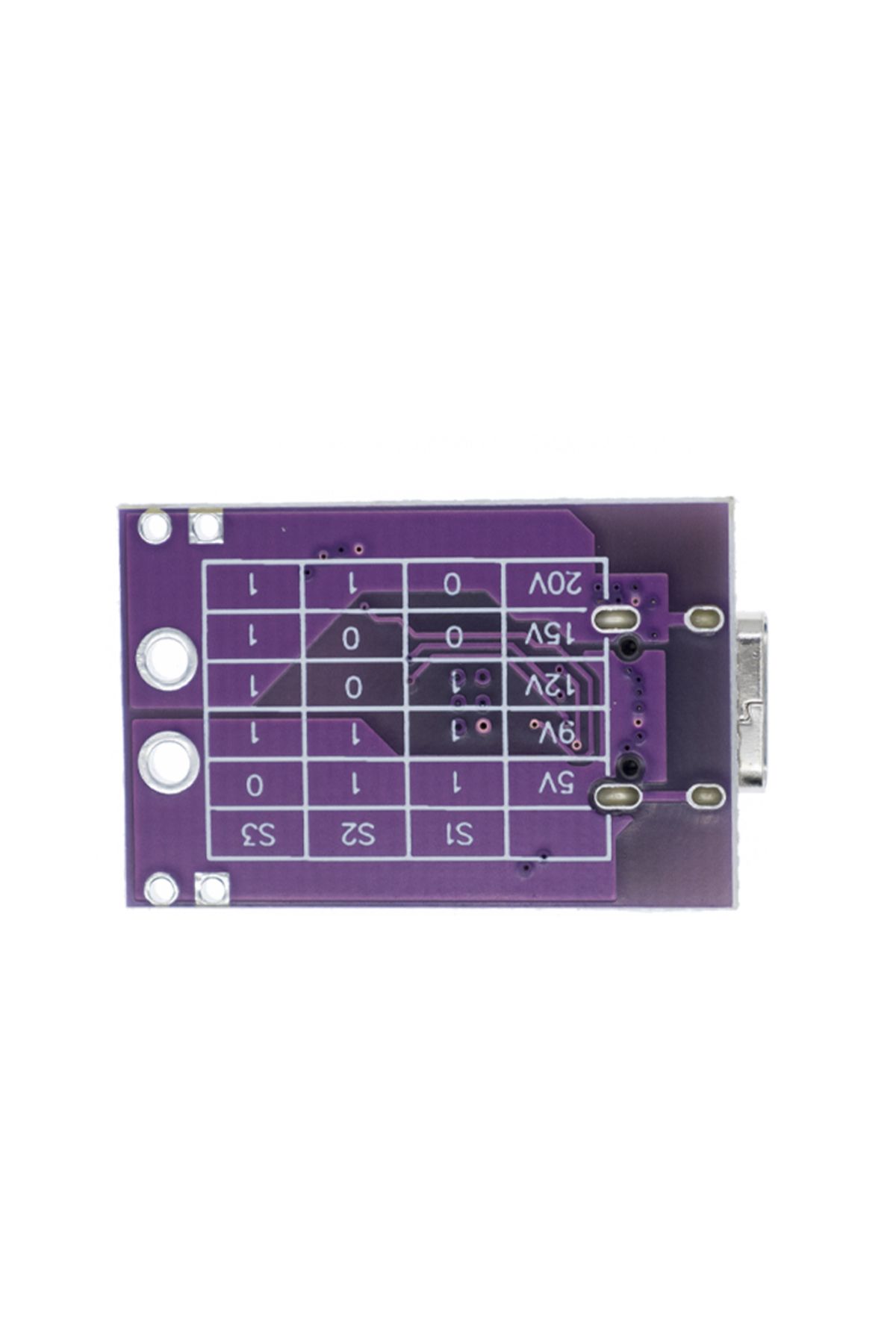

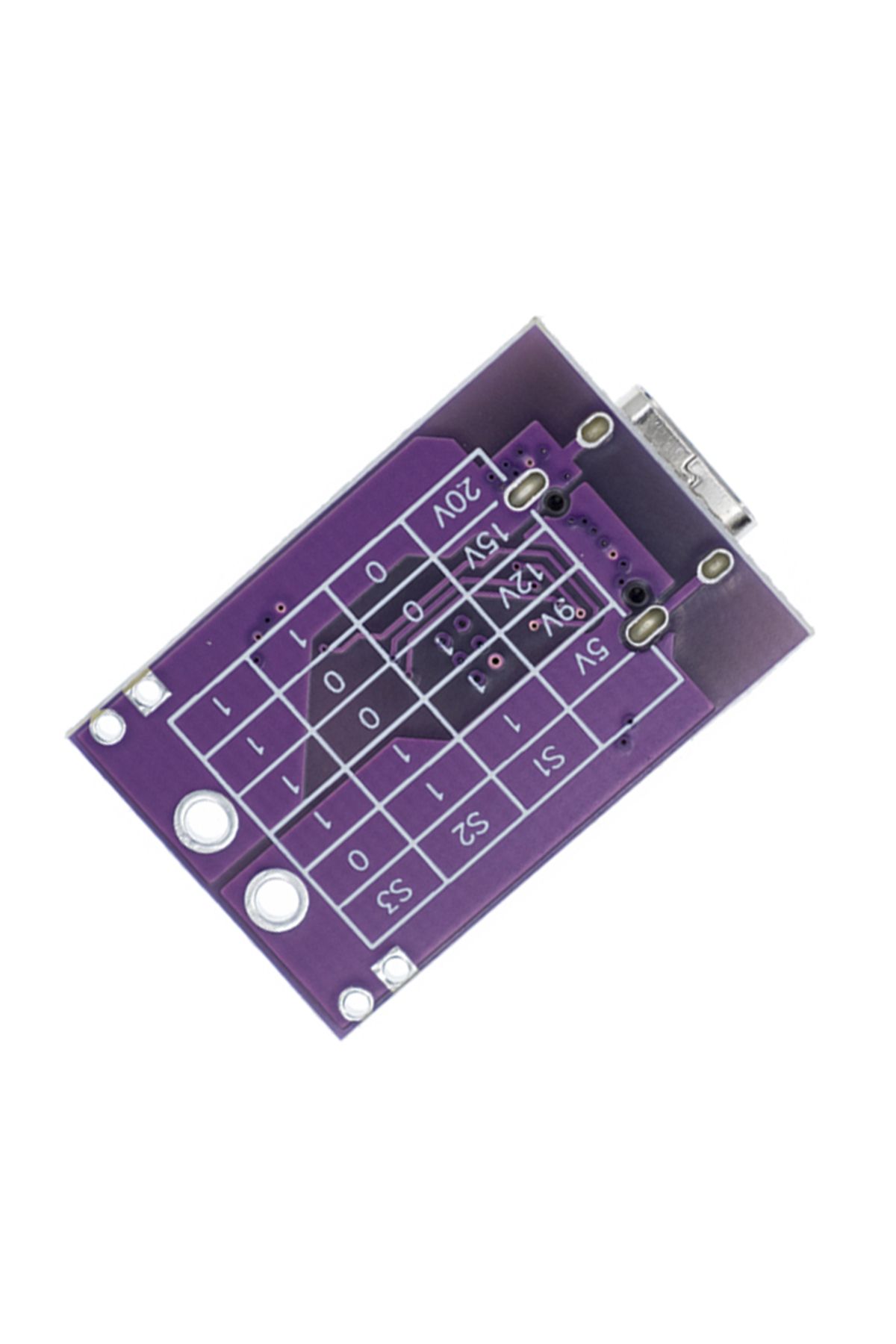

Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to control the voltage output

Size: 3.1*2*cm

Net weight: 2.9g

1. After adjusting the DIP switch, because there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.

2. If the DIP switch is not adjusted according to the table, the module will output any one of the above voltages.
