Color:White

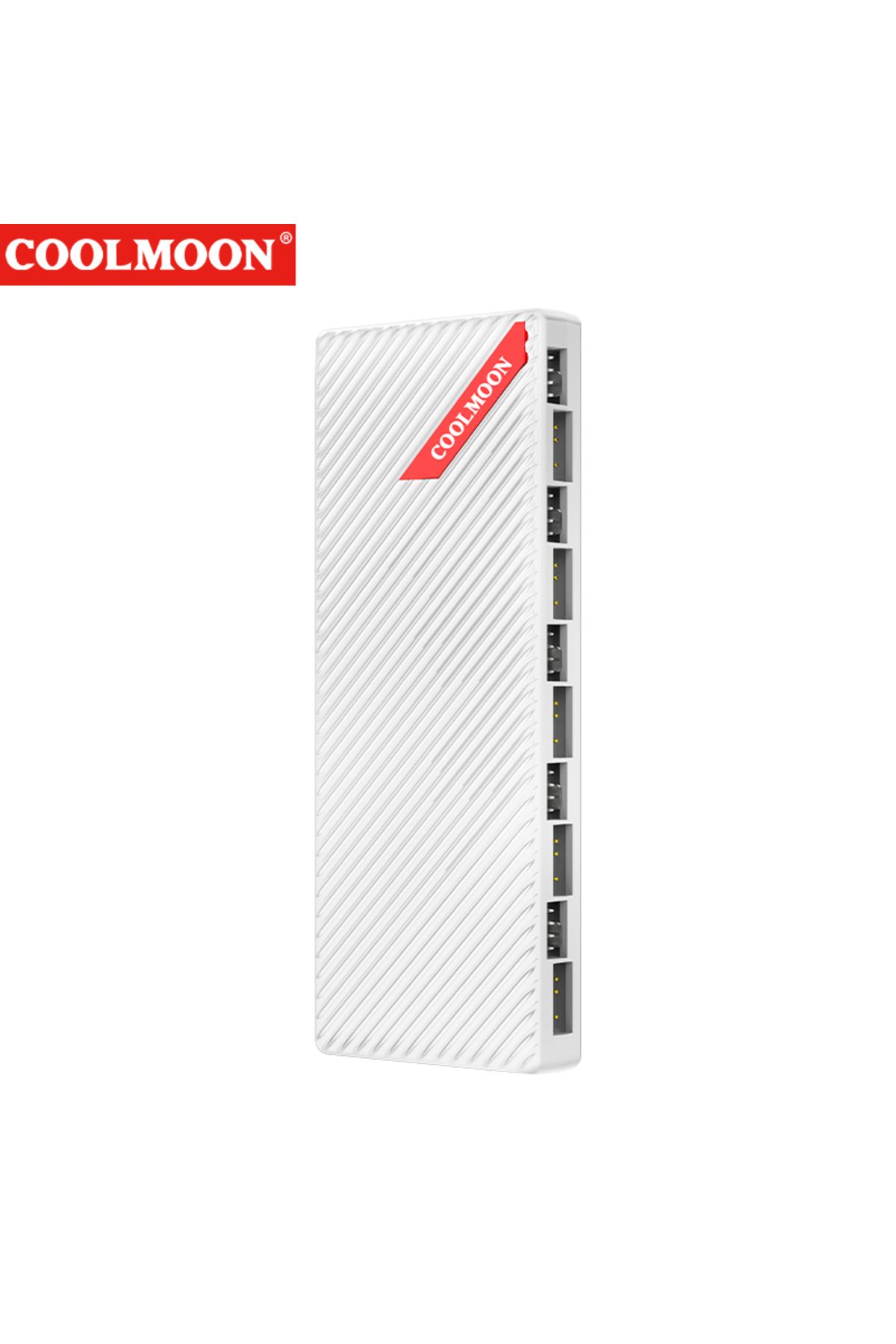

1 To 10 PWM & ARGB Hub Splitter SATA Powered 4 Pin PWM 3 Pin Addressable ARGB Adapter Magnetic Suction 5V 3Pin Cooling Fan Controller for PC Case Fan
Feature:
1. Expansive Multi-Interface Design: The PWM & ARGB hub splitter boasts a dual-channel design with 10*3Pin ARGB interfaces and 10*4Pin PWM temperature control interfaces, each protected by independent grid protection. Equipped with ARGB motherboard connection cables and PWM temperature control signal lines, it supports the installation of up to 10 ARGB fans simultaneously. This convenient installation method significantly enhances the expansion capabilities, making PC assembly more efficient.
2. Intelligent PWM Temperature Control: Featuring smart PWM temperature control, the 4 pin PWM 3 pin addressable ARGB adapter optimizes power consumption and reduces noise. Once the motherboard's PWM temperature control mode is activated, the fan speeds adjust automatically with CPU temperature changes-speeding up for rapid cooling when temperatures rise and slowing down to save energy and minimize noise when temperatures fall, supporting intelligent temperature control intervention for the CPU FAN.
3. Synchronized ARGB Lighting: The ARGB controller splitter enables synchronized lighting effects with other ARGB products, supporting major motherboard brands like compatible with ASUS/ MSI/Gigabyte, /ASRock. It allows for DIY customization of lighting styles through software control of the radiator lights, provided the motherboard supports a 5V 3PIN ARGB interface. This feature enables programming for even more lighting effects, empowering users to dictate their unique lighting style.
4. Stable SATA Power Supply: The 5V 3pin cooling fan controller simplifies connections with just a power cable and a one-to-two motherboard sync line required. It directly powers through a SATA interface, providing ample power for both 12V and 5V 3-pin ARGB products like CPU coolers and case fans. This ensures a stable power output without burdening the motherboard, even under full load conditions.
5. Compact and Practical Design: The 4pin PWM hub features a sleek black and white streamlined appearance with a 16.8mm slim body, making it an artistic yet functional addition to any build. It's highly compatible with most cases, saving space and simplifying cable management for a tidy interior. The quality shell protection and PVC material brand logo enhance its texture and class. Its magnetic bottom design offers great installation flexibility, easily fitting inside the case or attaching to any ferrous part of the case for convenience.

Specification:
Certification: CE
Origin: Mainland China
Type: PWM Controller/HUB
Product name: 1 point 10 chassis fan HUB hub
Product model: AM10
Product color: black, white (optional)
Product material: ABS+PVC+electronic components
Product voltage: DC 12V fan + DC 5V lamp beads
Product current: <10A
Product power: <60W
Product interface: 10 PWM interfaces (4PIN) + 10 ARGB interfaces (3PIN)
Product size: 150x60x16.8mm/5.91x2.36x0.67inch
Product weight: 0.163kg (gross weight)

Note:
The motherboard must support the 5V ARGB (3PIN) interface before it can be used
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 X PWM & ARGB Hub Splitter
1 X PWM & ARGB Cable
1 X Instruction Manual
