ESP32 LoRa32 V3 Development Board WiFi BT Module Type-C SX1262 with OLED Display 868MHz / 915MHz LoRa Kit for Arduino IoT
Description:
WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.
It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.
Note:
Include antenna;
Include SH1.25 x 2 battery connector;
Include 2.54 pin (no welding) and pin map sticker;
Not include battery;
Features:
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
- Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed. it can be found on this page;
- With good RF circuit design and low-power design.
868MHz 915MHz GSM IPX IPEX 1.13 UF.L Antenna Built-in 2DBi for LORA32U4II
Description:
Frequency: 824-960MHz
Gain: 2DBi
Standing wave ratio / S.W.R.≤2.0
Impedance: 50Ω
Max Input power: 50W
RF Cable: RG1.13 cable

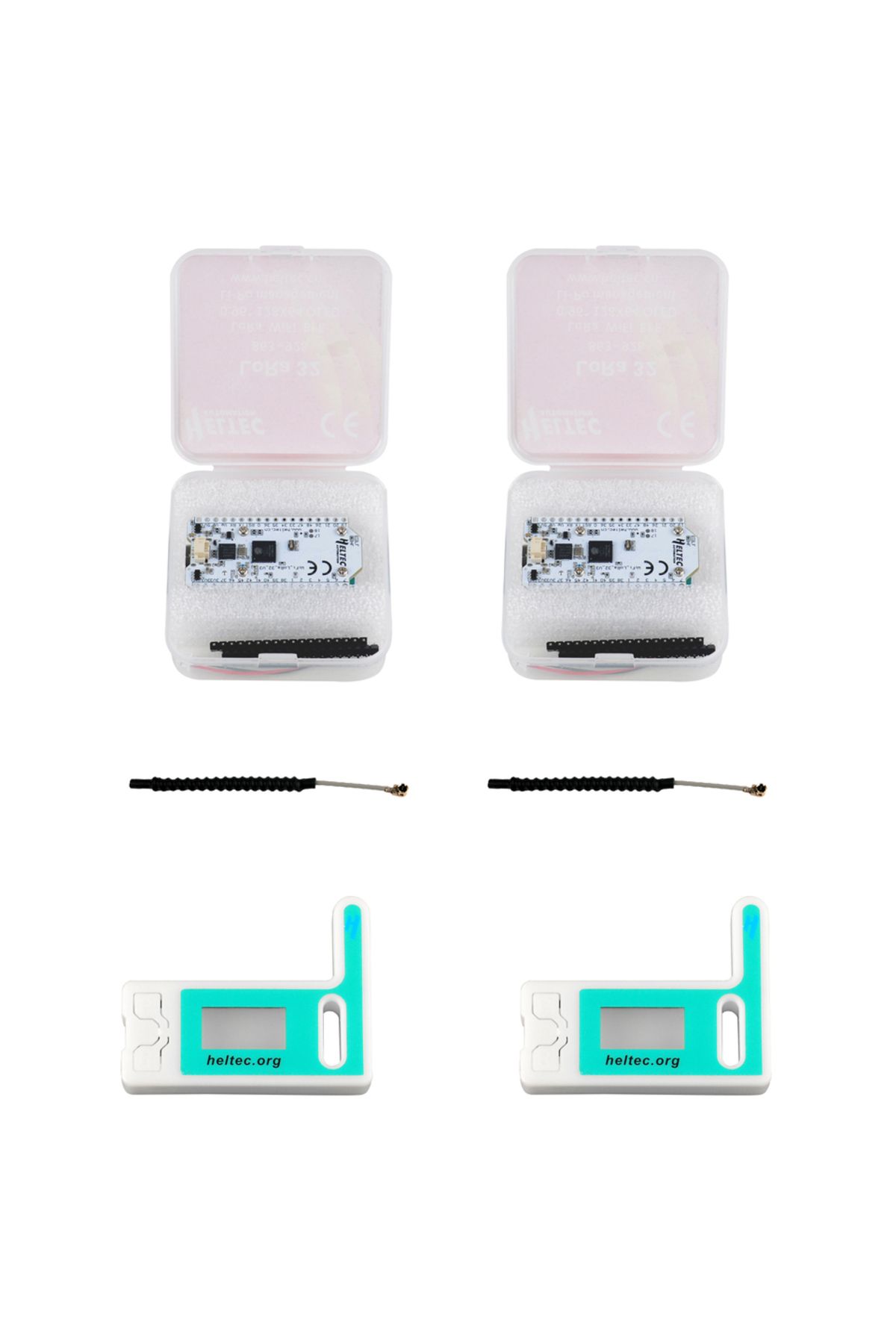

Package includes:
2 X ESP32 Lora V3 OLED development board
2 X LoRa Antenna 824-960MHz
2 X JST 1.25mm-2P Connector
2.54 pin (no welding)
2 X shell for V3 LoRa Node Development board
or
2 X ESP32 Lora V3 OLED development board
2 X LoRa Antenna 824-960MHz
2 X JST 1.25mm-2P Connector
2.54 pin (no welding)
