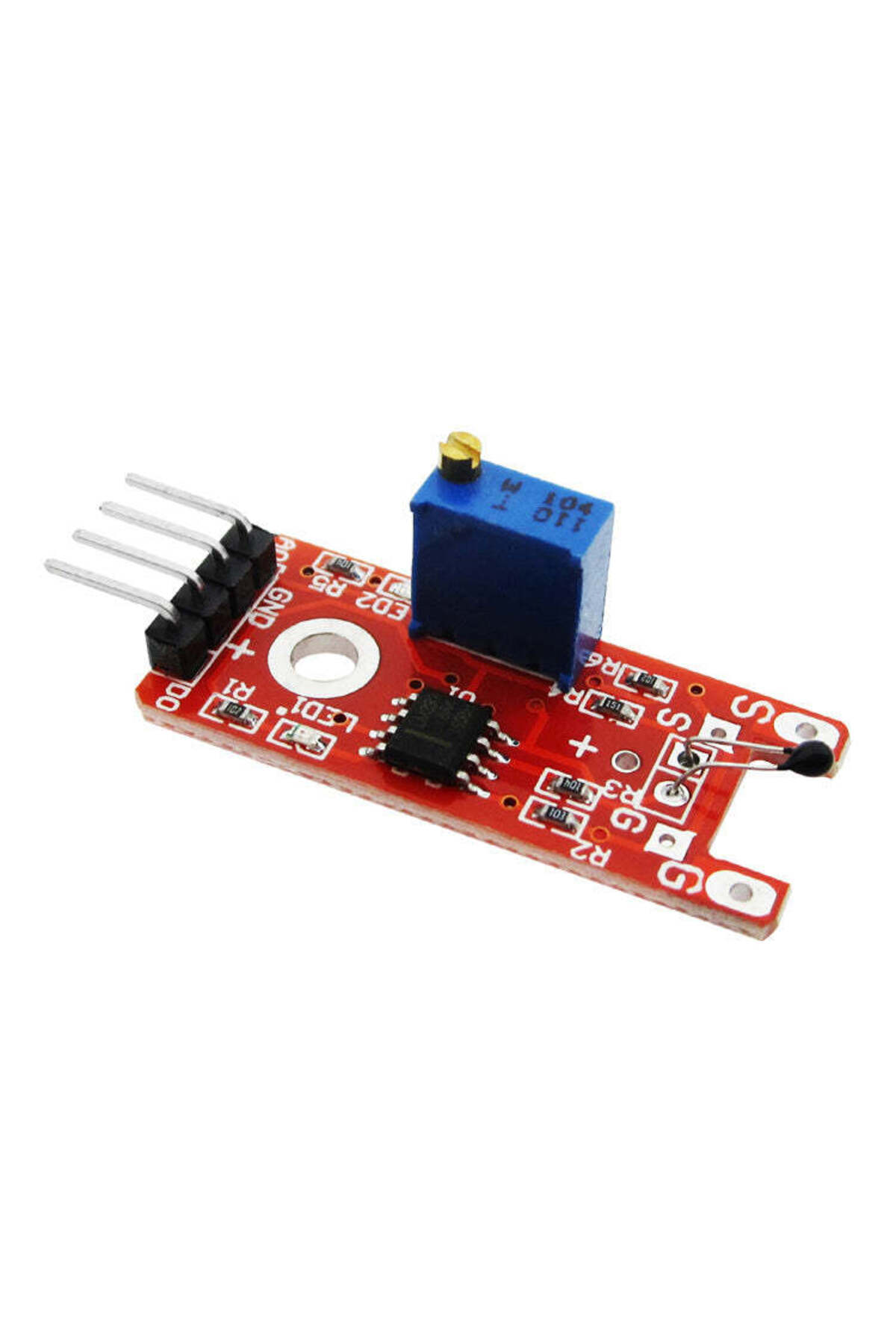

Generic 2D10B Ky-028 Digital Temperature Thermistor Thermal Sensor Module
33.00
AED
(incl. VAT)
Free shipping & Delivery
Estimated delivery:
Trendyol's commitments
Shopping security
Secure payment
Privacy protection
Safe delivery
Refund for lost and damaged packages
Coupon for late delivery
Free returns
Easy and free return in 15 days.
Highlighted features:
Generic 2D10B Ky-028 Digital Temperature Thermistor Thermal Sensor Module features
Other Features
Digital and Analog Outputs, Adjustable detection threshold
Instructions for Use/Warnings
Connect the board’s analog output (A0) to pin A0 on the Arduino and the digital output (D0) to pin 3. Connect the power line (+) and ground (G) to 5V and GND respectively. When the temperature threshold is reached, the digital interface will send a HIGH signal turning on the LED on the Arduino (pin 13). Turn the potentiometer clockwise to increase the detection threshold and counter-clockwise to decrease it. Since the analog output pin is directly connected to the potentiometer it isn’t possible to use the Steinhart-Hart equation to calculate the temperature as we did with the KY-013, we can only use this value to measure relative changes in temperature.
Product details
Generic 2D10B Ky-028 Digital Temperature Thermistor Thermal Sensor Module features
Other Features
Digital and Analog Outputs, Adjustable detection threshold
Instructions for Use/Warnings
Connect the board’s analog output (A0) to pin A0 on the Arduino and the digital output (D0) to pin 3. Connect the power line (+) and ground (G) to 5V and GND respectively. When the temperature threshold is reached, the digital interface will send a HIGH signal turning on the LED on the Arduino (pin 13). Turn the potentiometer clockwise to increase the detection threshold and counter-clockwise to decrease it. Since the analog output pin is directly connected to the potentiometer it isn’t possible to use the Steinhart-Hart equation to calculate the temperature as we did with the KY-013, we can only use this value to measure relative changes in temperature.
Safety information
Product safety information
