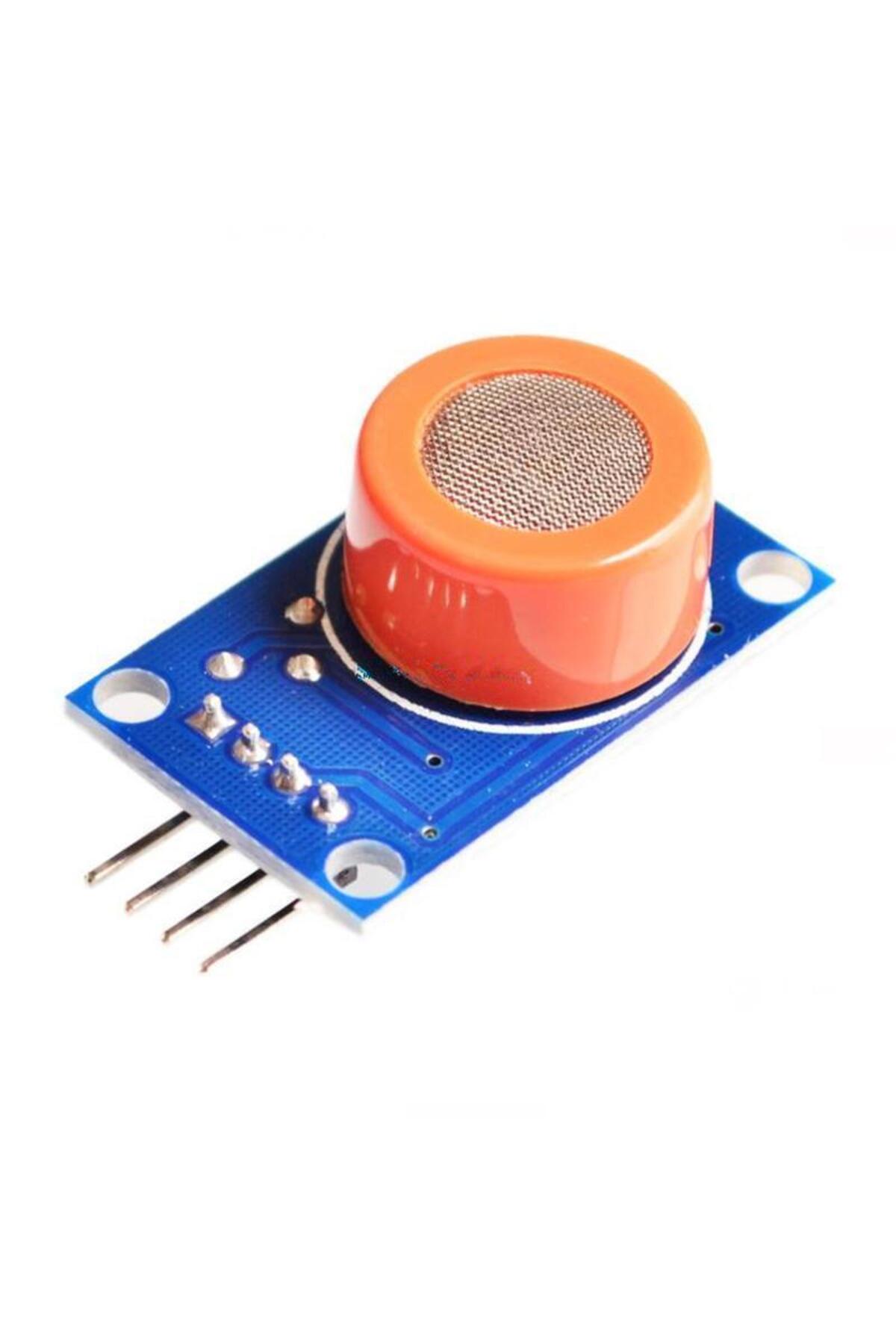

Generic 8A2 MQ-3 Alcohol Ethanol Sensor Module Gas Detector Sensor
31.85
AED
(incl. VAT)
Free shipping & Delivery
Estimated delivery:
Trendyol's commitments
Shopping security
Secure payment
Privacy protection
Safe delivery
Refund for lost and damaged packages
Coupon for late delivery
Free returns
Easy and free return in 15 days.
Highlighted features:
Generic 8A2 MQ-3 Alcohol Ethanol Sensor Module Gas Detector Sensor features
Other Features
Semiconductor-type sensor, SnO2 sensitive material, Fast and high sensitivity, Good sensitivity, Long life, Economical, Simple drive circuit, Low-power standby mode, Measures Ethanol and smoke
Instructions for Use/Warnings
Connect the VCC pin of the sensor to the 5v pin of the Arduino UNO. Connect the GND pin of the sensor to the GND pin of the Arduino UNO. Connect the A0 pin of the sensor to the A0 pin of the Arduino UNO. Connect the D0 pin of the sensor to the D2 pin of the Arduino UNO. The operating voltage of the sensor is between 4.7-5 volts DC. The operating temperature of the sensor is between -10-50°C.
Product details
Generic 8A2 MQ-3 Alcohol Ethanol Sensor Module Gas Detector Sensor features
Other Features
Semiconductor-type sensor, SnO2 sensitive material, Fast and high sensitivity, Good sensitivity, Long life, Economical, Simple drive circuit, Low-power standby mode, Measures Ethanol and smoke
Instructions for Use/Warnings
Connect the VCC pin of the sensor to the 5v pin of the Arduino UNO. Connect the GND pin of the sensor to the GND pin of the Arduino UNO. Connect the A0 pin of the sensor to the A0 pin of the Arduino UNO. Connect the D0 pin of the sensor to the D2 pin of the Arduino UNO. The operating voltage of the sensor is between 4.7-5 volts DC. The operating temperature of the sensor is between -10-50°C.
