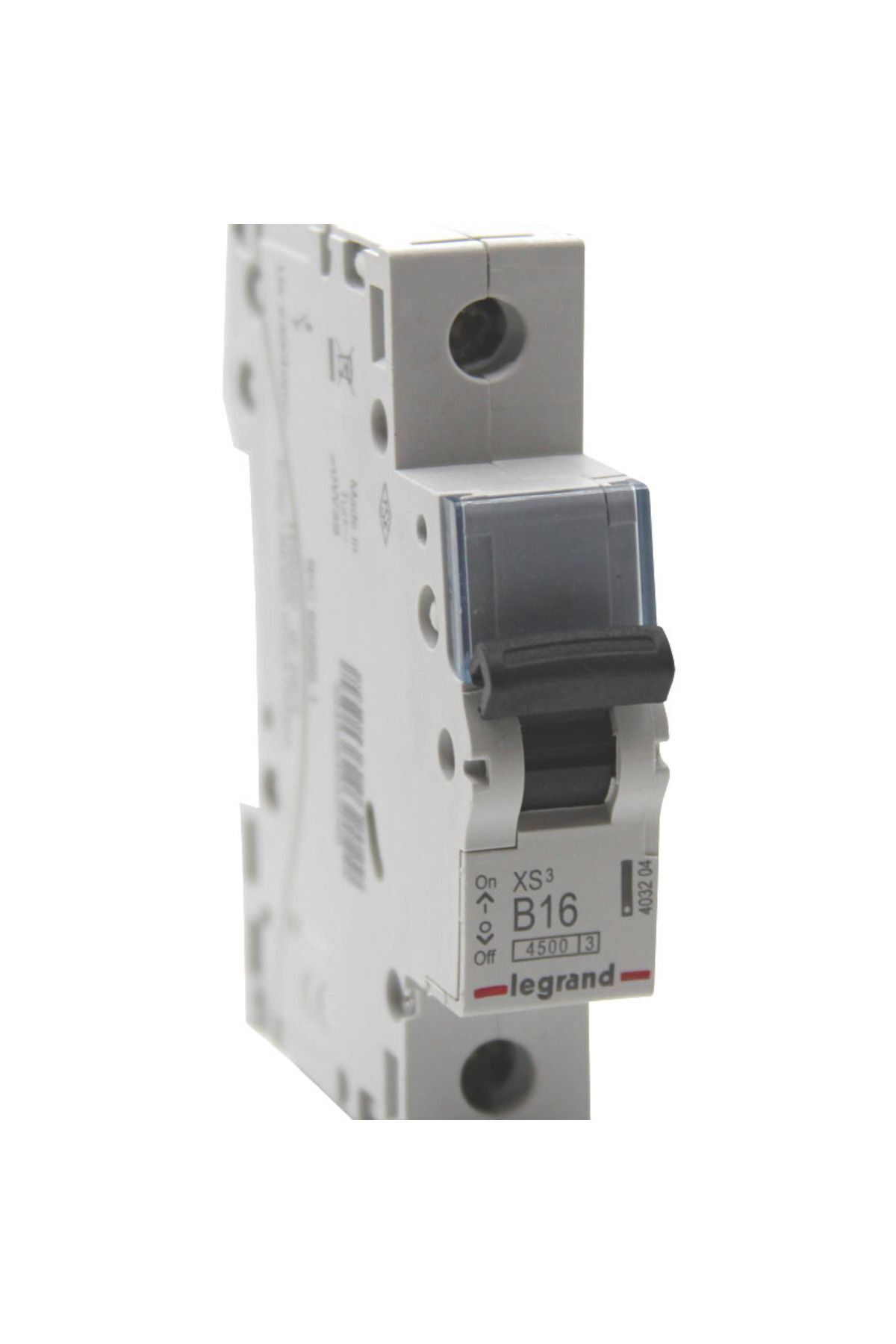

Legrand 1*16a 4.5ka B Type Single Phase Automatic Fuse

Legrand Automatic Fuses Designed to meet the requirements of modern installations in residential and commercial applications, Legrand's new XS³ series switchgear provides effective protection against short circuits, overcurrent and residual current faults. Featuring thermal, magnetic circuit breakers and residual current devices, and complemented by numerous controls and auxiliary signaling, these series offer safety, durability and ease of installation for your installations. SAFE AT ALL LEVELS The new XS³ series guarantees maximum protection to ensure the safety of life and property.

RELIABLE CONNECTIONS The use of automatic busbars and good input and output connections of the device eliminate the risk of short circuits.

INCREASED SAFETY IP 2x terminals - no risk of touching live points even if the cover is open.

LIMITING CLASS 3 Automatic fuses provide excellent short circuit protection with third class limitation. They limit the short-circuit energy released in the cables, thus helping to extend the service life of the equipment.

EASY WIRING The shape of the screws and terminals ensures superior mechanical resistance of the cables and limits the connection impedance, temperature rise and heat loss.

35 mm² high capacity terminals start from a current level of 25 A.

ERGONOMIC LABEL PLATES Tailor-made label plates.

These plates provide effective and sustainable protection for labels used to clearly identify circuits for quick intervention in the event of a fault. HIGH ASSEMBLY QUALITY AND ENVIRONMENTALLY FRIENDLY XS³ series have approved certificates issued by independent certification bodies for the requirements of the products.

Designed in accordance with RoHS directive requirements.

10000 on/off electrical endurance.

Suitable for extreme operating conditions from -25°C to +70°C.

ISO 9001 Quality and ISO 14001 Environmental Protection Certificates.

Operates in accordance with IEC 60898-1 Standards.

Breaking capacity: 4500 - IEC 60898-1 - 230/400 V± 4.5 kA - IEC 60947-2 - 230/400 V± Can be equipped with DX³ auxiliary contacts.

Technical Specifications Type:B
