Product information

Other Features: *S1-B WZ Only

Product features

Color:S1-B WZ Only


ZigBee & RF AC Triac Dimmer

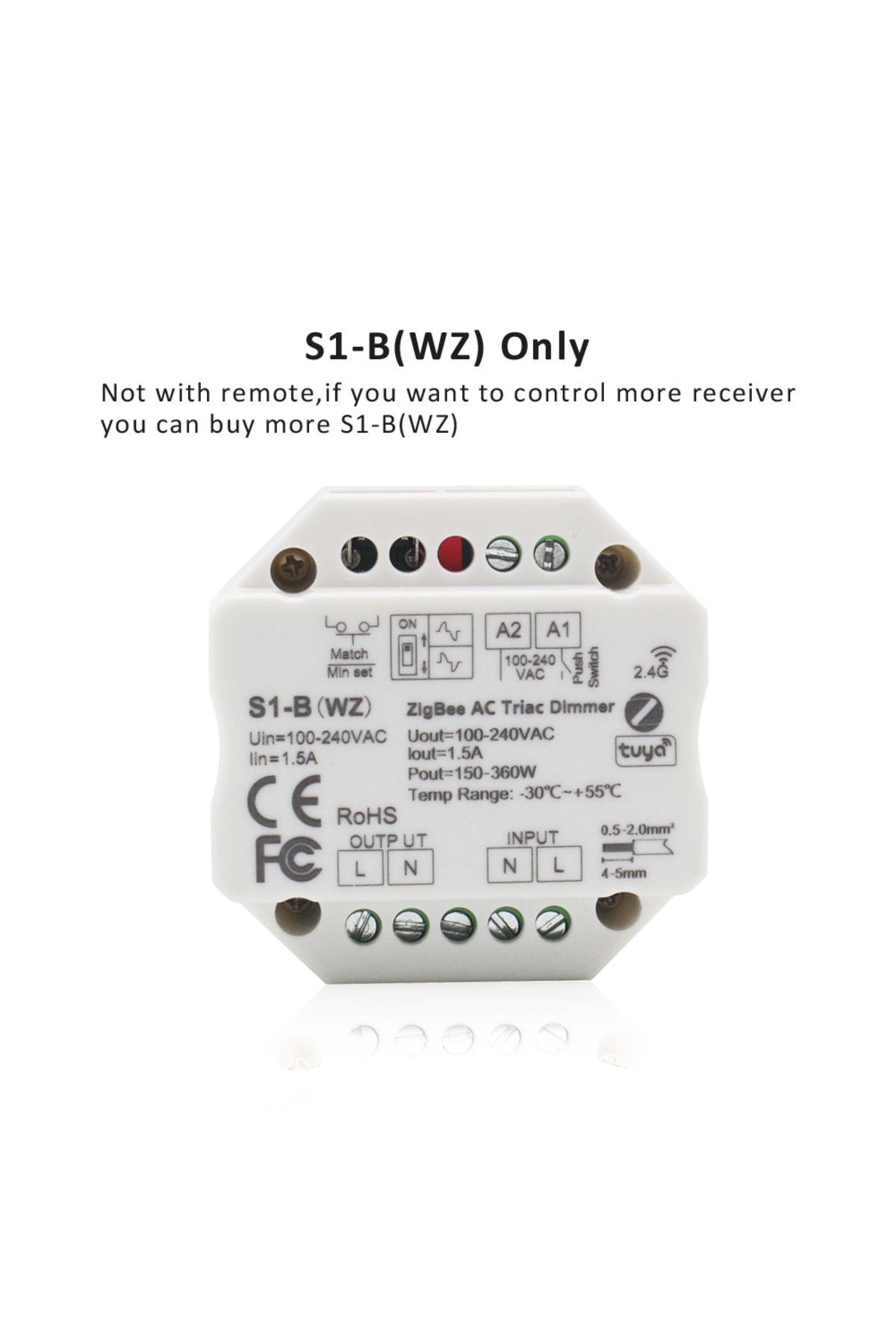

Model No.: S1-B(WZ)

Tuya APP cloud control/RF dimming/Push Dim/Leading edge or trailing edge/Wall junction box mounting

Features:

 ●ZigBee + RF + Push AC phase-cut dimmer, 1 channel output
●To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
●Tuya APP cloud control, support on/off, brightness adjust, delay turn on/off light, timer run, scene and music play function.
● 256 levels 0-100% dimming smoothly without any flash.
●Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.
●Compatibility with RF 2.4G single zone or multiple zone dimming remote control.

(IF you want to buy 2.4G remote, you can buy from other link in our store)
●Each S1-B(WZ) controller can also work as ZigBee-RF converter, then use Tuya APP to control one or more RF dimming LED controller or driver synchronously.
●Connect with external push switch to achieve on/off and 0-100% dimming function.
● Easy to be placed in standard wall junction box behind a push switch.
● Over-heat / Over-load protection, recover automatically.

Mechanical Structures and Installations

System wiring

Wiring diagram

Compatible Load Types

Leading edge or trailing edge dimming setting

Min brightness setting

Long press Min set key for 10s, the light blink 2 times, ready for min brightness set,

then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%,
the light will output the current min brightness immediately

Wait 8s, quit min brightness set automatically, the light will return output 100% brightness.

Tuya APP network connection and operation

S1-B(WZ) match RF remote control (Optional)

End user can choose the suitable match/delete ways. Two options are offered for selection:

Use the S1-B(WZ)’s Match key

Match:
Short press match key of S1-B(WZ),
immediately press on/off key (single zone remote)
or zone key (multiple zone remote) on the remote.

Delete:
Press and hold match key of S1-B(WZ) for 15s
to delete all match,
The light blinks 5 times means all matched remotes were deleted.

Use Power Restart :

Match:
Switch off the power of S1-B(WZ), then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.

Delete:
Switch off the power of S1-B(WZ), then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.

S1-B(WZ) work as ZigBee-RF converter to match other RF dimming LED controller or driver

End user can choose the suitable match/delete ways. Two options are offered for selection:

Use the controller’s Match key

Match:
Short press match key of the controller,
immediately press on/off key on the Tuya APP.
The LED indicator fast flash a few times
means match is successful.

Delete:
Press and hold match key of the controller for 5s,
The LED indicator fast flash a few times
means all matched remotes were deleted.

Use Power Restart

Match:
Switch off the power of the controller, then switch on power again,
immediately short press on/off key 3 times on the Tuya APP.
The light blinks 3 times means match is successful.

Delete:
Switch off the power of the controller, then switch on power again,
immediately short press on/off key 5 times on the Tuya APP.
The light blinks 5 times means all matched remotes were deleted.

AC Push Dim Function (Optional)

Short press:
Turn on or off light.

Long press (1-6s):
Press and hold to step-less dimming,
With every other long press, the light level goes to the opposite direction.

Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
