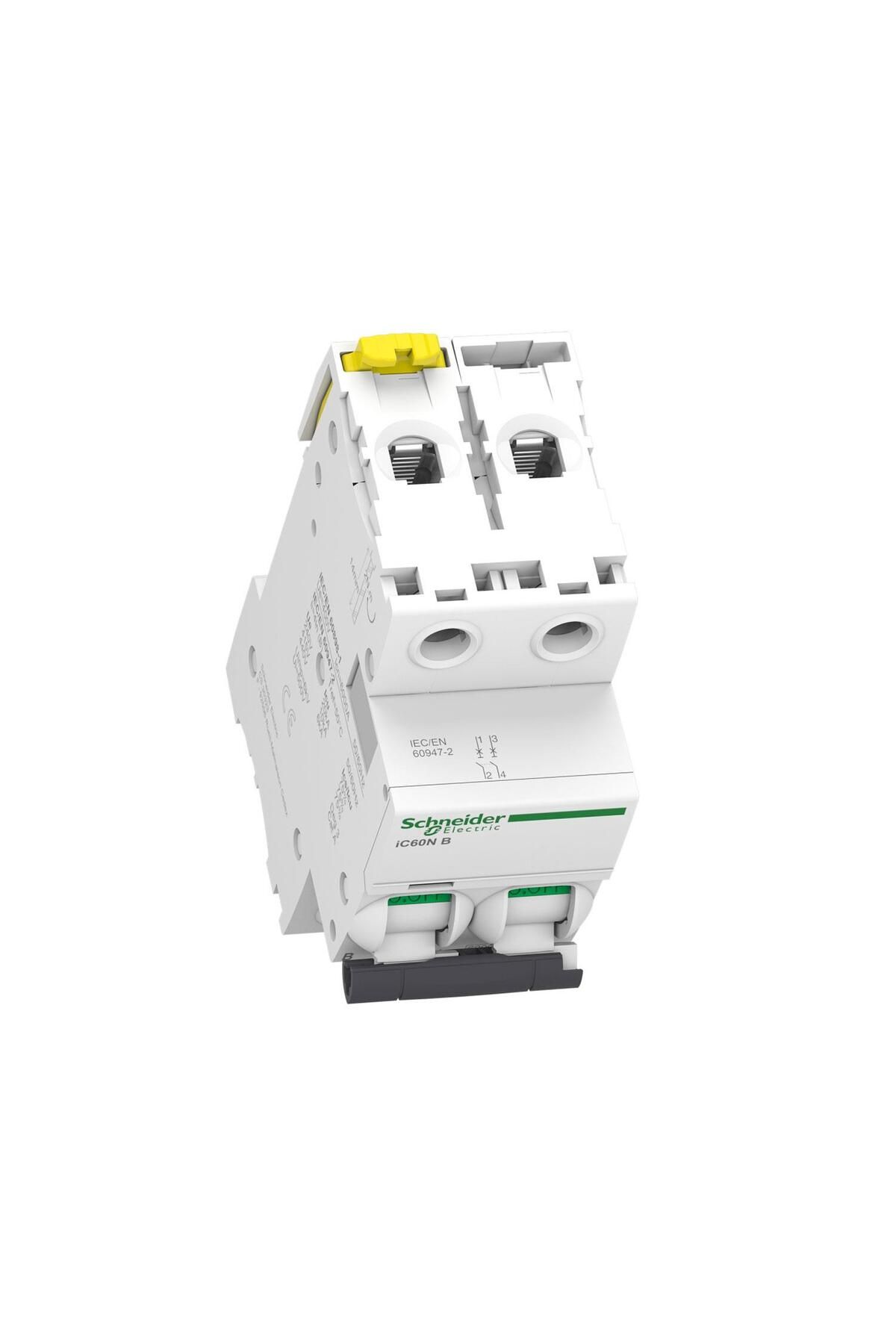

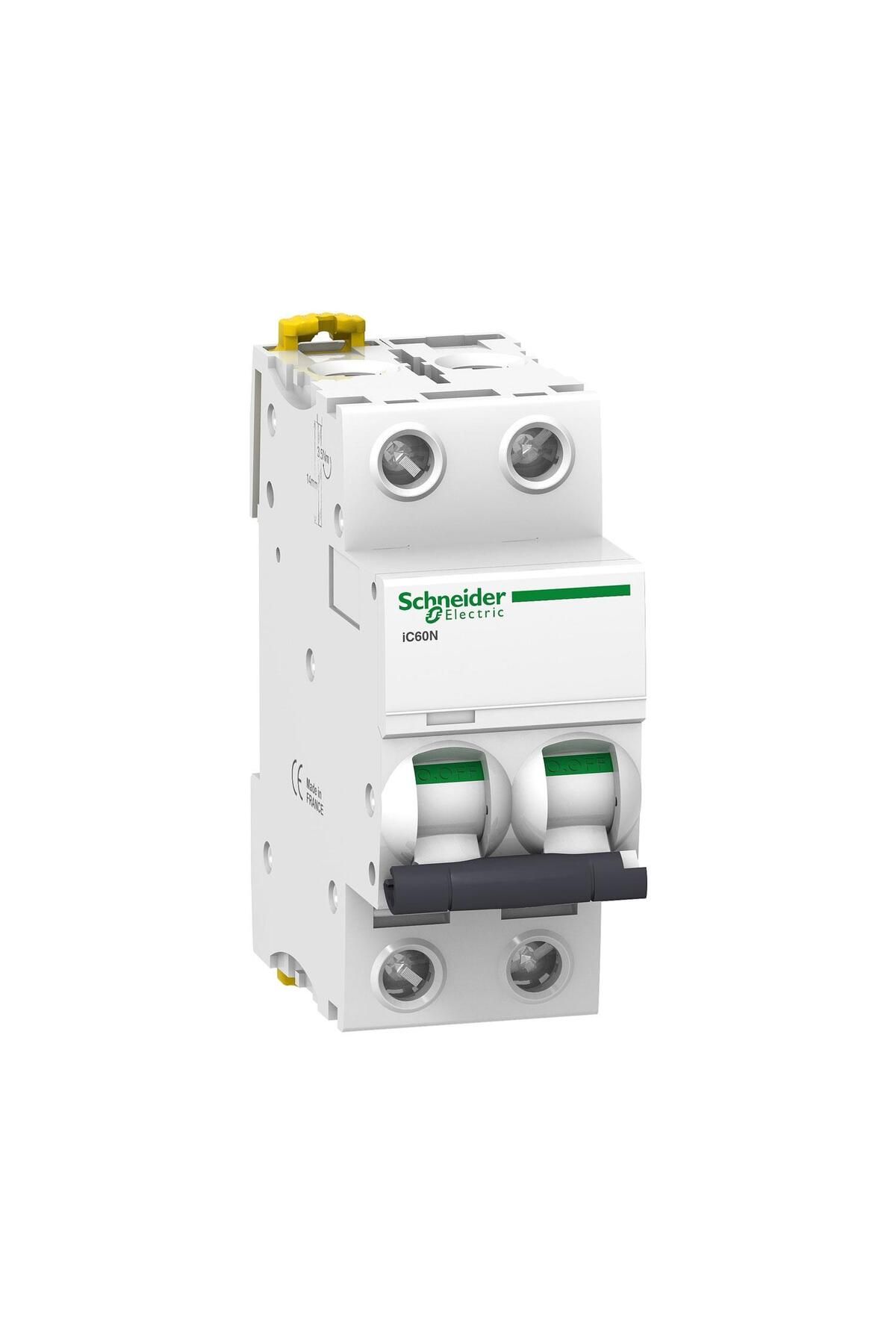

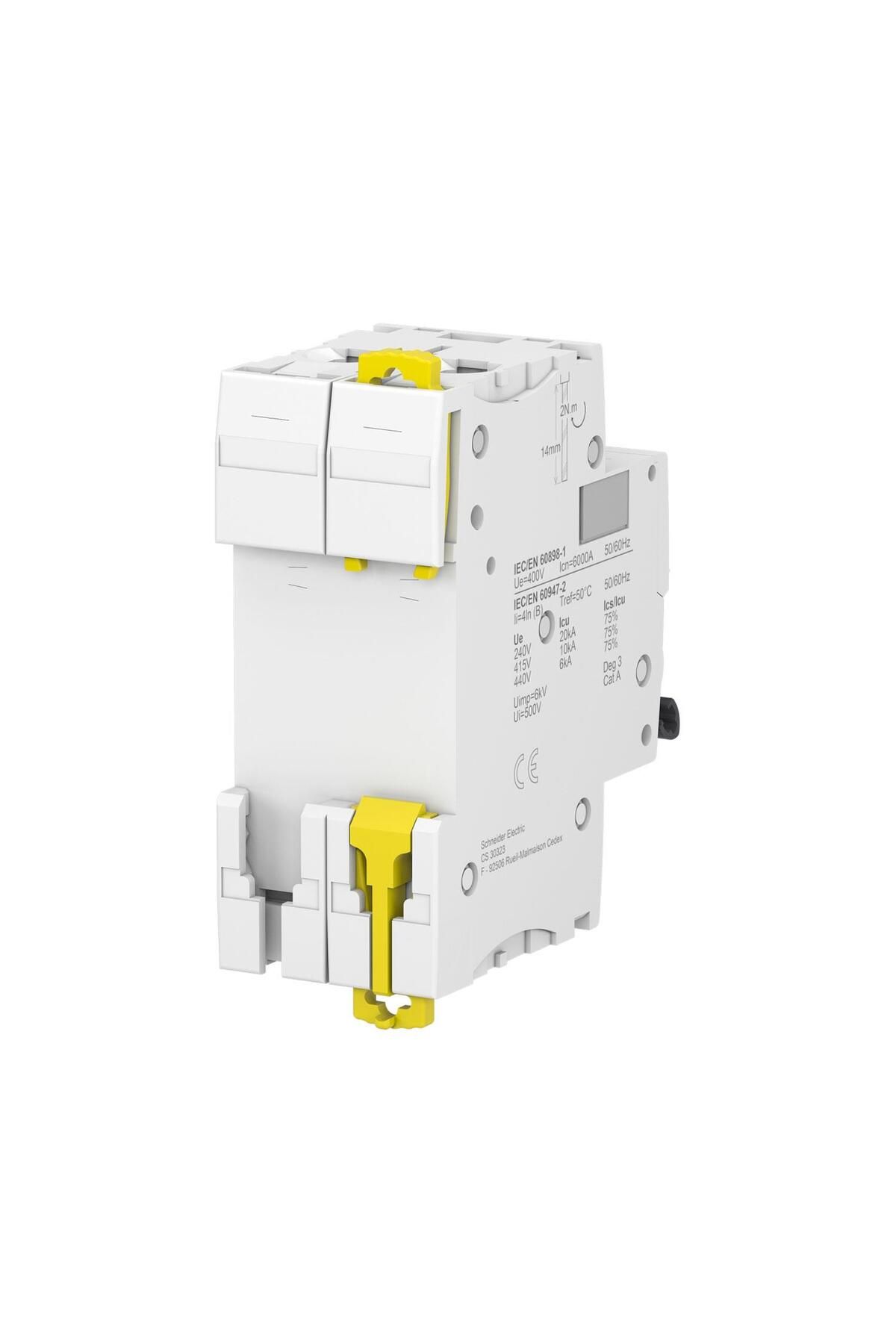

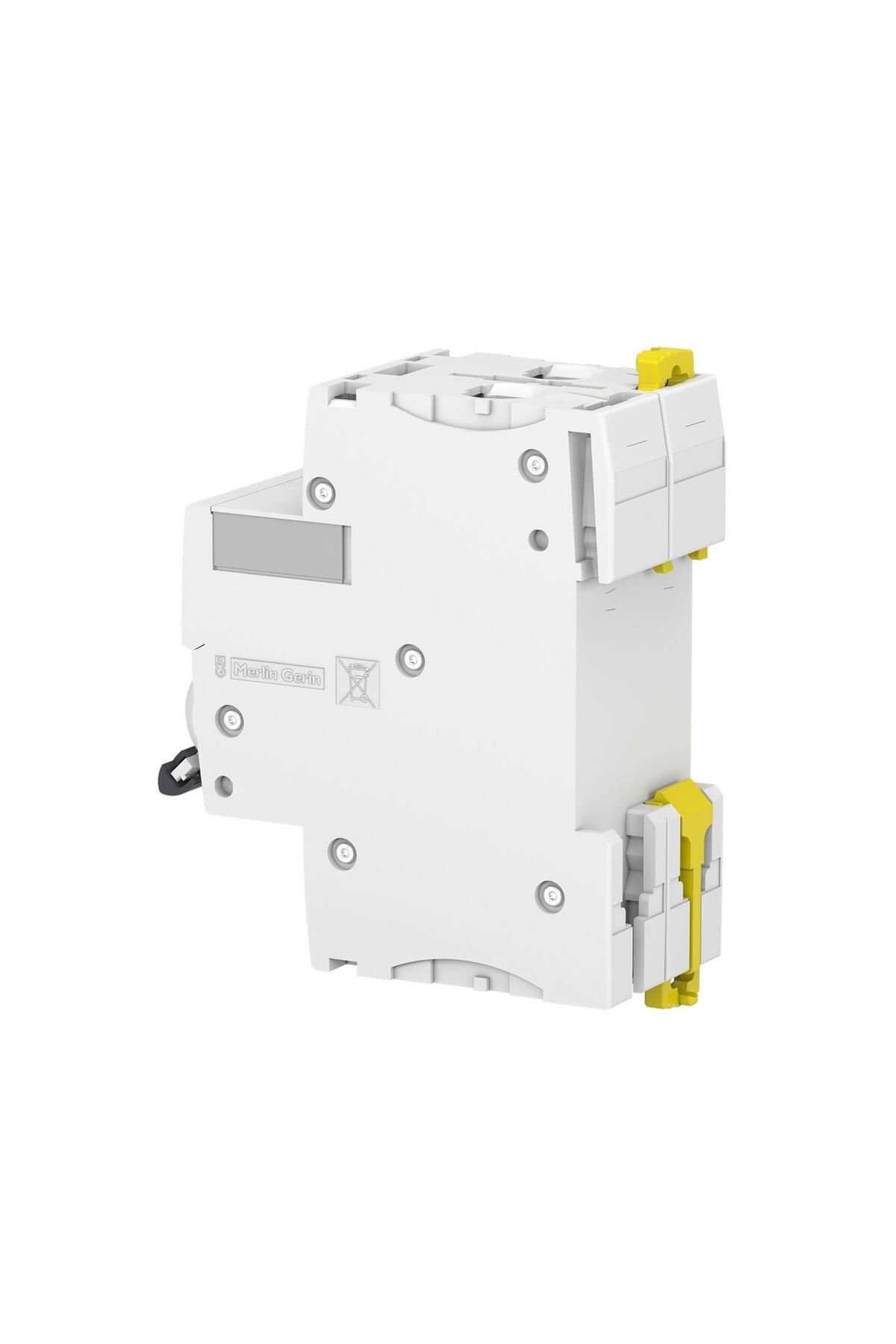

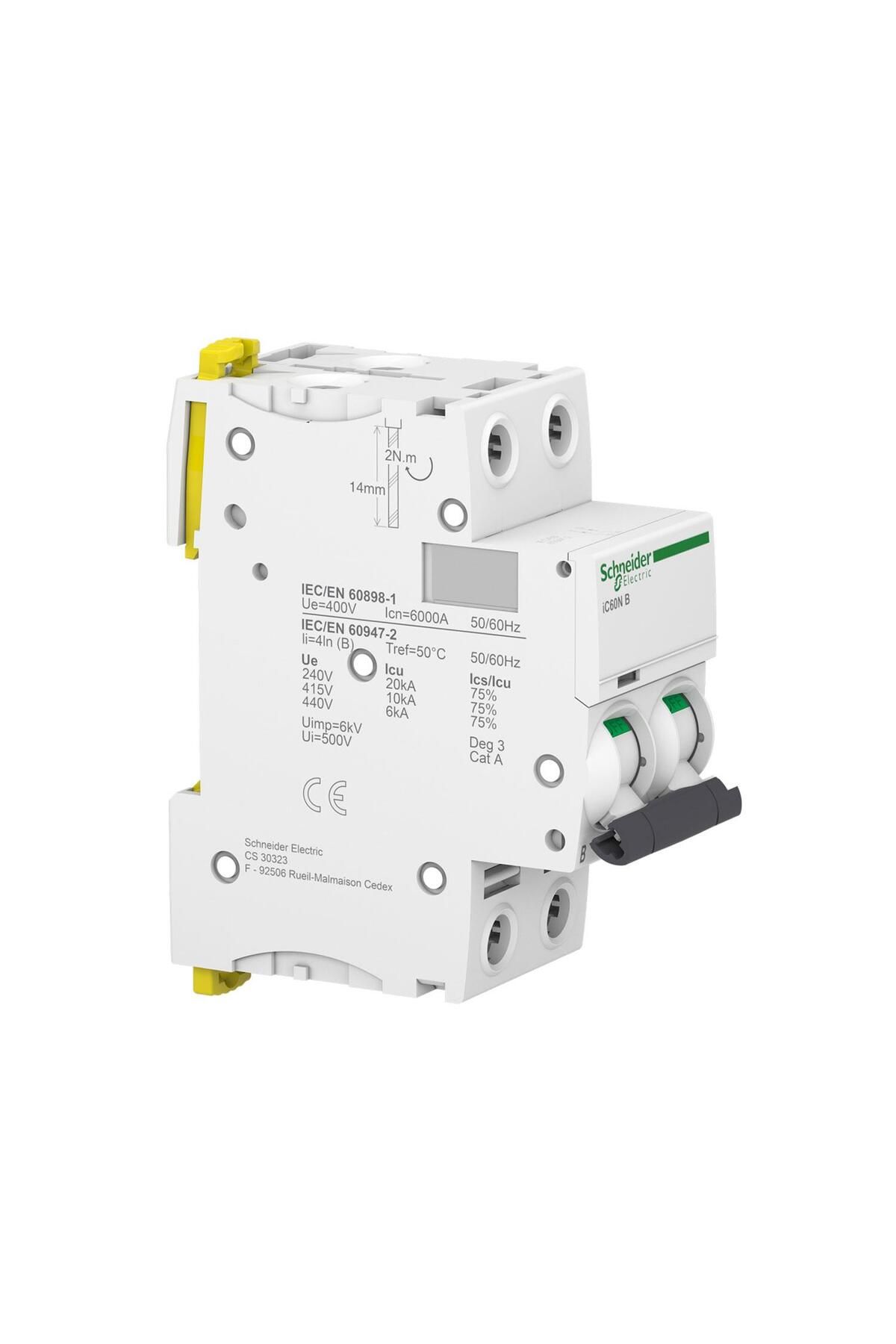

Schneider Acti9 Ic60n A9f74225 25a - 2P 6KA C Curve Fuse

Schneider electric acti9 ic60 automatic fuseschneider electric acti9 ic60 mcb series automatic fuses are included in the acti9 complete electrical system, which provides protection, monitoring and control of your electrical installation, and are divided into three product series acti9 ic60n, ic60h and ic60l

- rated current: 1a to 63a, - wide options in breaking capacity (up to 100ka) and trip curves: b, c, d, k, z and ma, - suitable for insulation in accordance with industrial standard iec 60947, - operating voltage: up to 440v ac, insulation voltage: 500v, - compatibility with acti9 series and compact nsx shaped boxed circuit breakers (mccbs).

"schneider acti9 ic60n a9f74225 25a fuse (2p, 6ka, c curve) technical specifications:- miniature circuit breaker,- 2p pole designation,- number of protected poles 2,- 25a [in] rated current,- ac and dc network type,- thermal magnetic trip unit technology,- ""c"" type inclination code,- 50/60hz network frequency,- 8 x in ± 20% magnetic trip limit,- 500v ac 50/60hz [ui] rated insulation voltage,- 6kv [uimp] rated pulse withstanding voltage,- contact position indicator,- pass control type,- trip indicator on device signaling,- din rail fixed mounting type,- dimensions 85mm (h) x 36mm (w) x 78.5mm (d),- 0.255 kg product weight,- 20." 000 cycles mechanical durability,- 10. 000 cycle electrical durability, - suitable for ip20 iec 60529 protection degree, - (-35 ° C ….

70 ° C) ambient temperature for operation, - (-40 ° C ….

85 ° C) ambient temperature for storage, - en/iec 60898-1 and 60947-2 standards, - under 18 months manufacturer's warranty.
