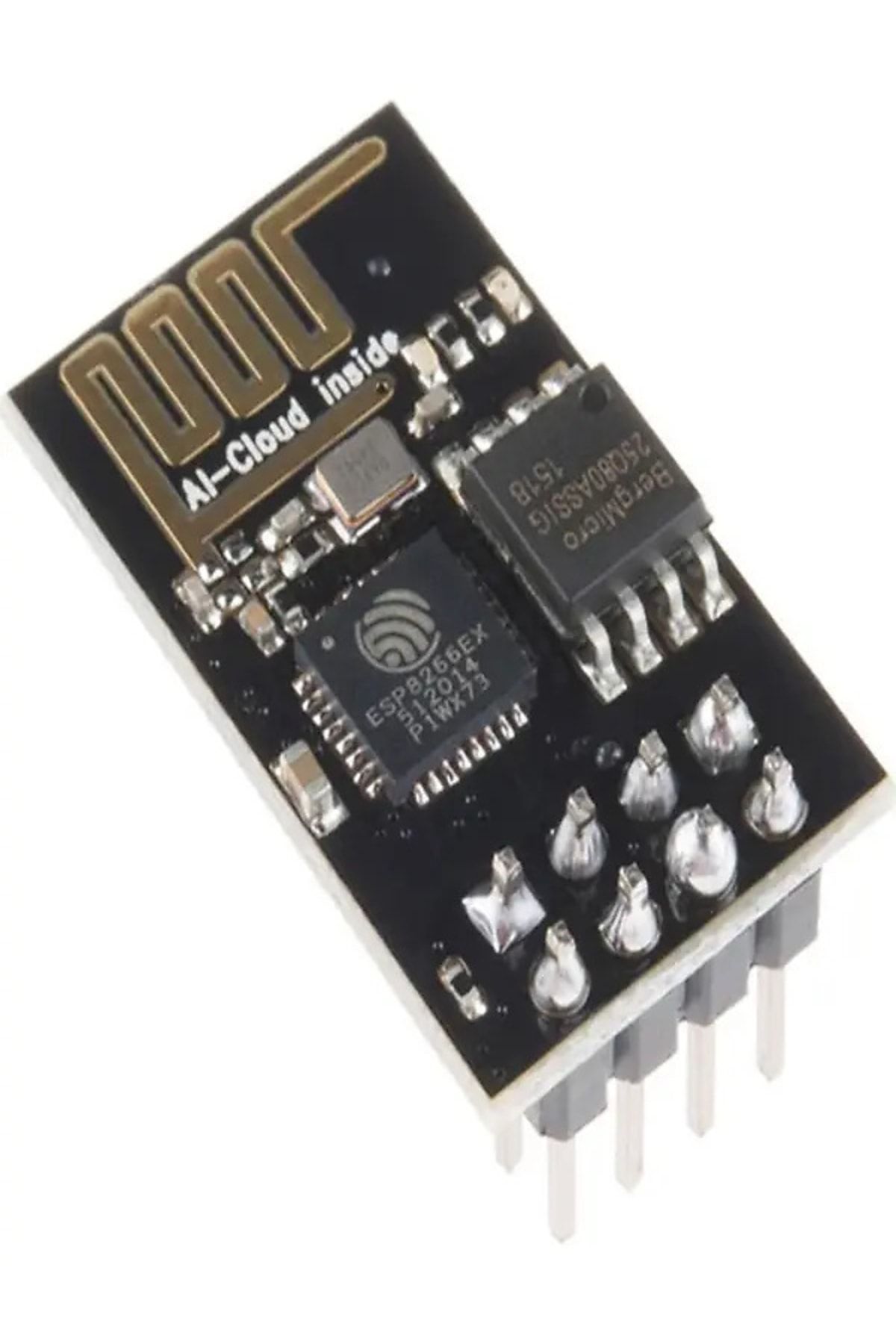

Diyotlab Esp8266 Serial Wi-fi Module

Esp8266 Serial Wi-Fi Module Product Details ESP8266 is a UART-Wi-Fi module with low power consumption.

With its low price and the possibility of use in many industrial applications, this module will be an indispensable element of your IoT projects.

You will want to connect all your projects to the internet with this module, which can connect directly to your wireless network.

For module use, you need to supply from the 3.3V part of your Arduino or power supply.

FEATURES: 802.11 b/g/n Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLLs, regulators, DCXO and power management units +19.5dBm output power in 802.11b mode Power down leakage current of <10uA Integrated low power 32-bit CPU could be used as application processor SDIO 1.1/2.0, SPI, UART STBC, 1×1 MIMO, 2×1 MIMO A-MPDU & A-MSDU aggregation & 0.4?s guard interval Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) Identical to adafruit item 2491 DATASHEET
